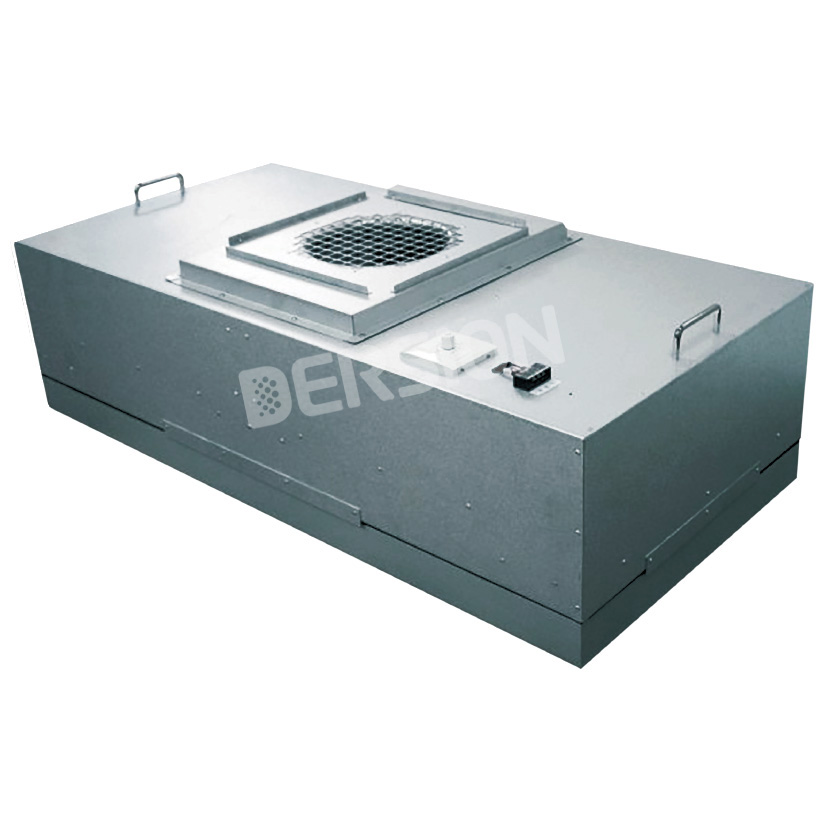

          FFU Fan Filter Units





	FFU(Fan Filter Units) are terminal air filter and air supply units with built-in fans and primary as well as HEPA filters. The fans running, sucking in air, the air streams filtered by primary and HEPA filters, then clean air blew out at speed of 0.45m/s±20%. FFU are modular units, installed in clean rooms, clean benches, clean work lines, modular clean rooms and partial Class 100 sites.



Functions:


	Provide high quality clean air for different clean room and microenvironments

	In the building and rebuilding of clean rooms, changing the number of FFU can change the cleanliness class.






                            Get A Quote


瀏覽次數：
















                                    Product Features:


	● Speed controlled by single-machine or long-range control patterns;

	● Extremely low power cost for running, especially installed with DC fans, reduce the running cost;

	● Internally installed air flue diversion, lowest noise and improve fans’ efficiency;

	● Imported maintenance-free centrifugal fans, give high wind and high hydrostatic pressure conditions, work life over 50,000 hours.

	● Apply to clean rooms, clean booths, and clean work lines, Class1-1000;

	● Tested by particle counter one by one according to US Federal 209E.

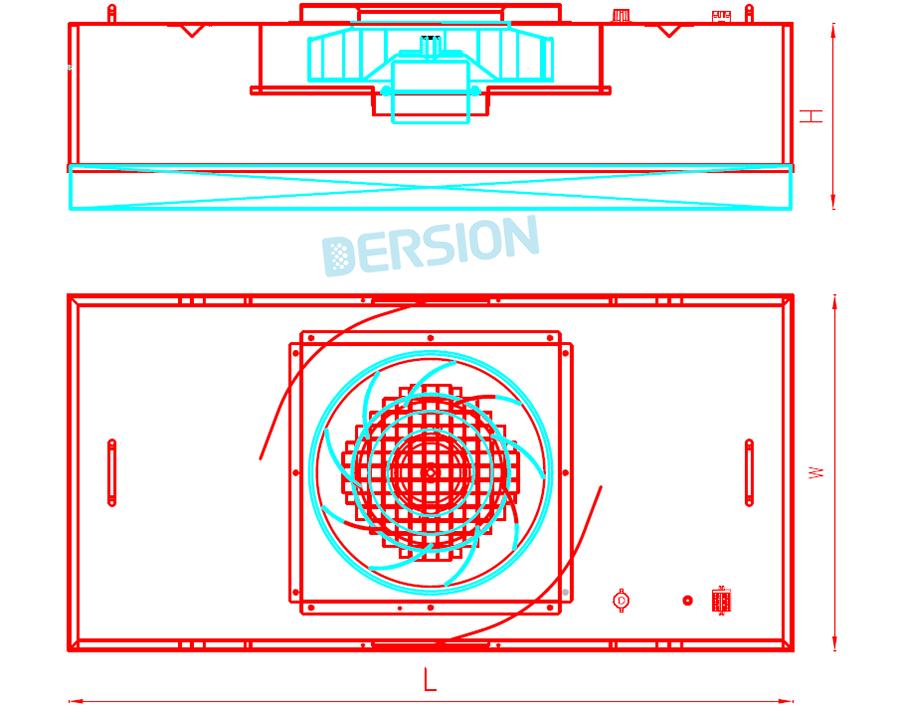

Standard Drawing:









	Specifications:







				       Size

				        2´×2´

				         2´×4´

				          3´×4´

				          4´×4´





				Outside Size

				      575×575×325

				     1175×575×325

				      1175×875×325

				      1175×1175×325





				 Air Volume (m3/h)

				520

				1080

				1800

				2210





				Air Speed

				0.45m/s±20%





				 Cleanliness Class

				100 Class( USA 209E Standard)





				HEPA efficiency

				99.99%@ 0.3um





				HEPA Sizes

				570×570×70

				1170×570×70

				1170×870×70

				1170×1170×70





				Noise

				(Test location: Underneath 1m, air speed 0.35m/s)





				<47dB

				<53dB

				<54dB

				<55dB





				Box Material

				Stainless steel/ Allumen/ Baking vanished steel





				Power Source



					230VAC  50Hz







				Power

				75w

				120w

				230w

				230w





				Weight

				18Kg

				35Kg

				38Kg

				41Kg

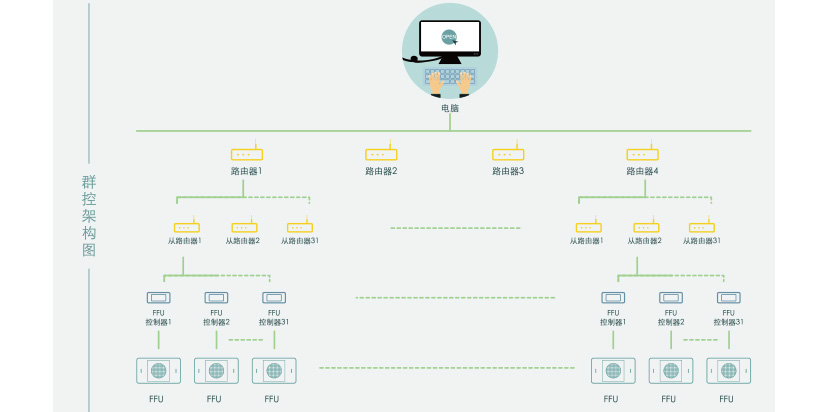

	Group Control System:













	Case Share:







	Foxconn Group







	USTC Institute
