Home Products Intelligent Air Showers

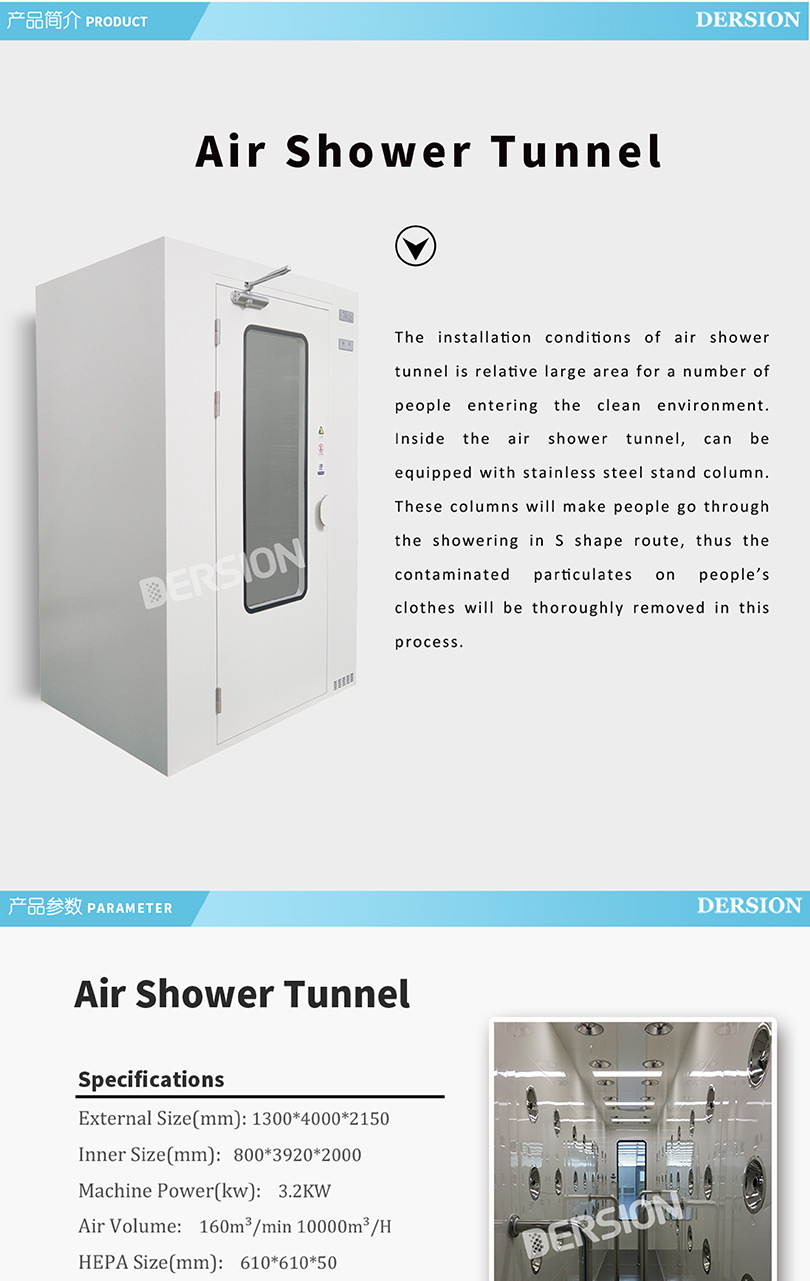

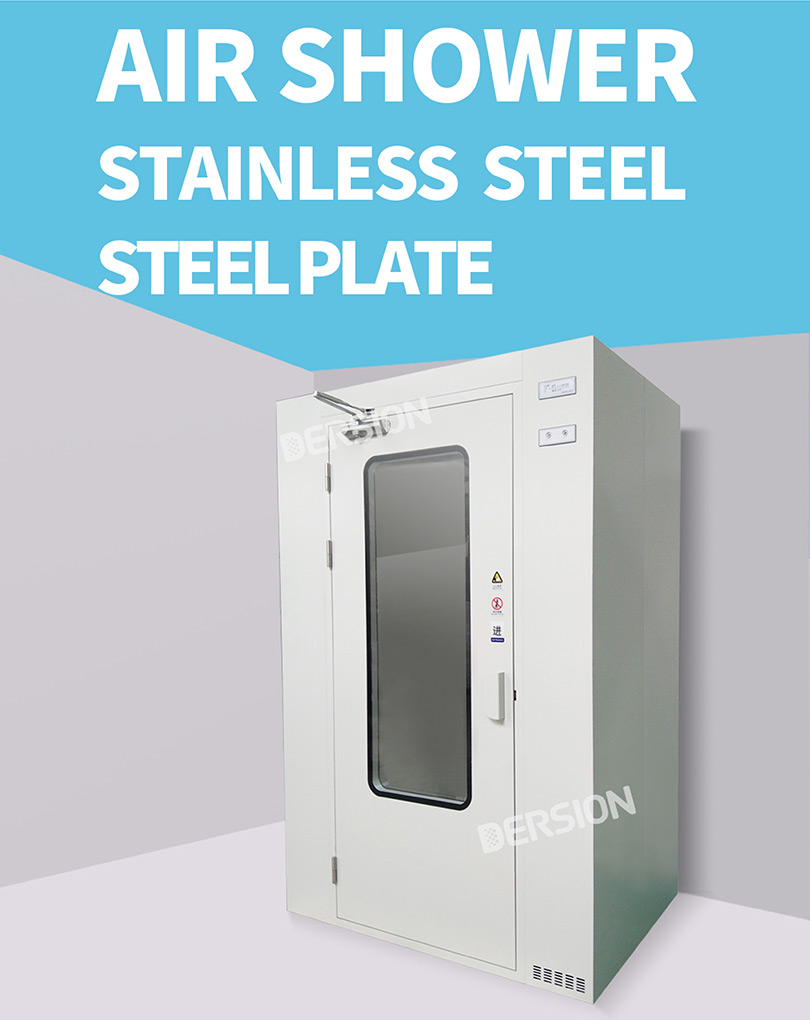

Air Shower Tunnel

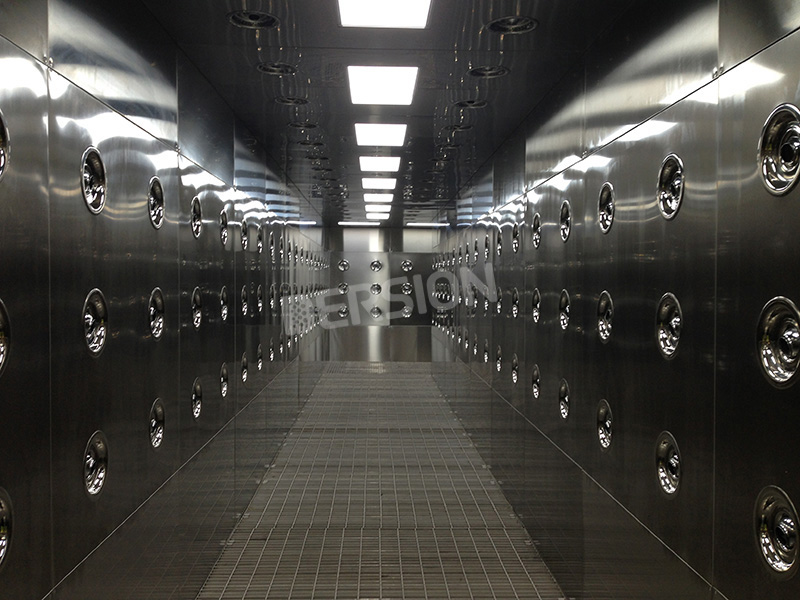

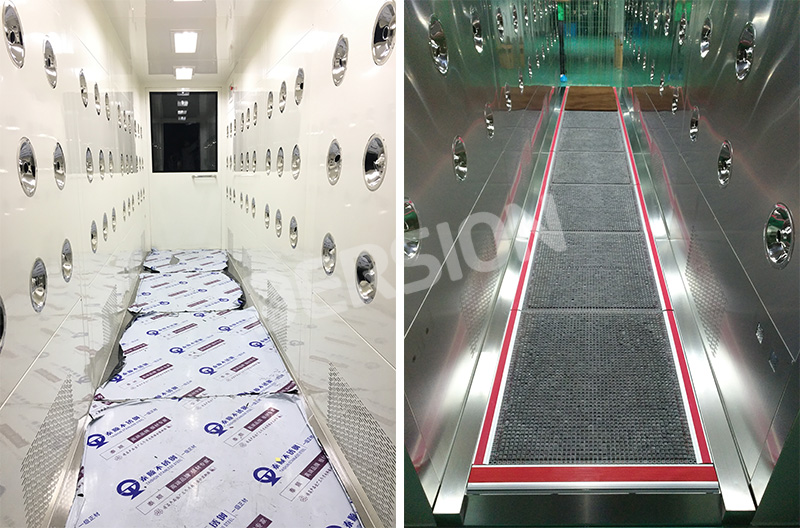

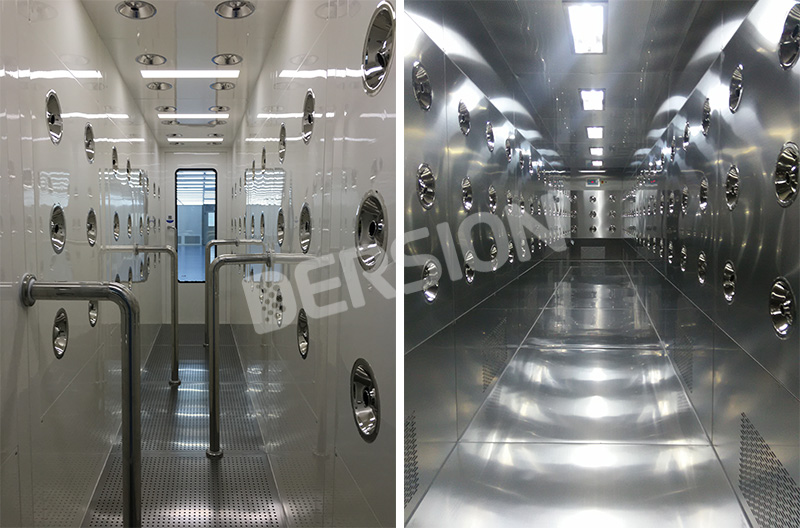

The installation conditions of air shower tunnel include large area and large number of people within the clean environment. Inside the air shower tunnel, can be equipped with stainless steel stand column. These columns will make people go through the showering in S shape route, thus the contaminated particulates on people’s clothes will be thoroughly removed in this process.

Get A Quote

瀏覽次數：

Product Features

Product Features:

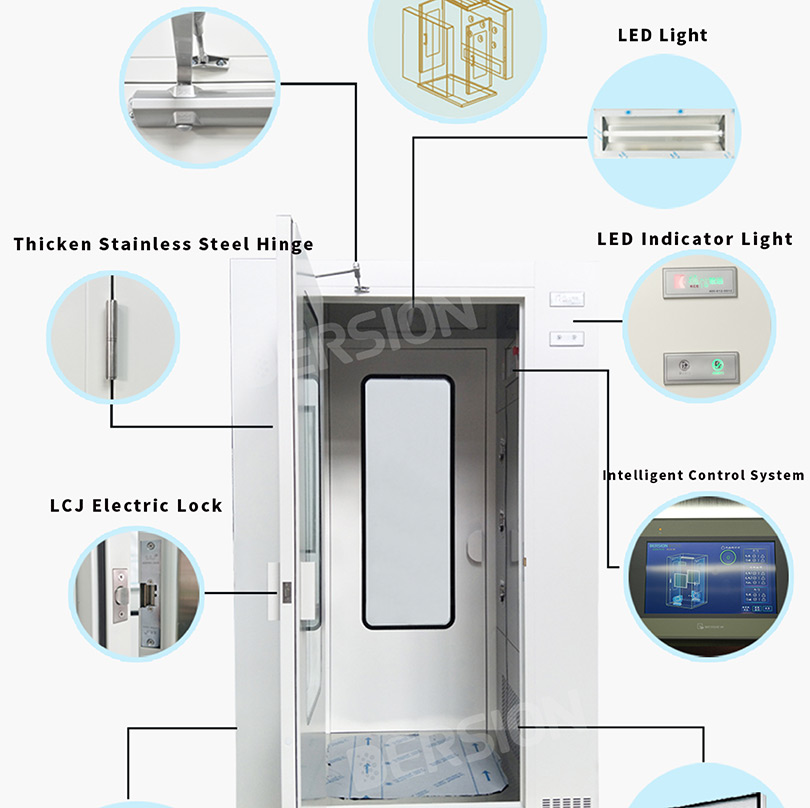

● Intelligent: Future Series Control System; ARM master, double CPU, 280MHZ; Several shower patterns; Voice prompt, pictures and videos display; Intelligent judging about link and running status; Fault self-detection capability; Reserved sockets for transducers of air speed, air pressure, cleanliness class.

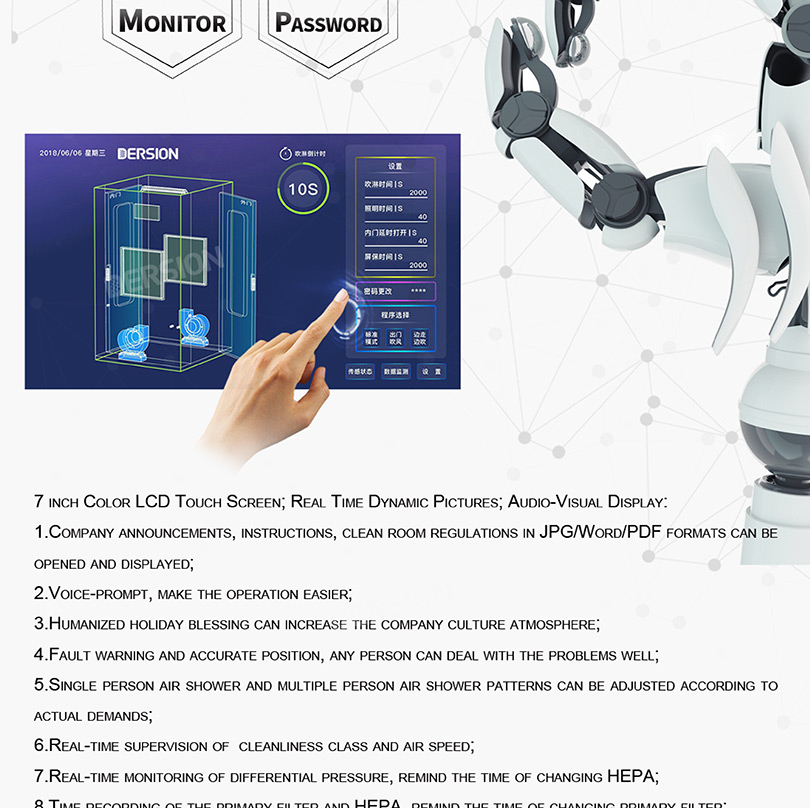

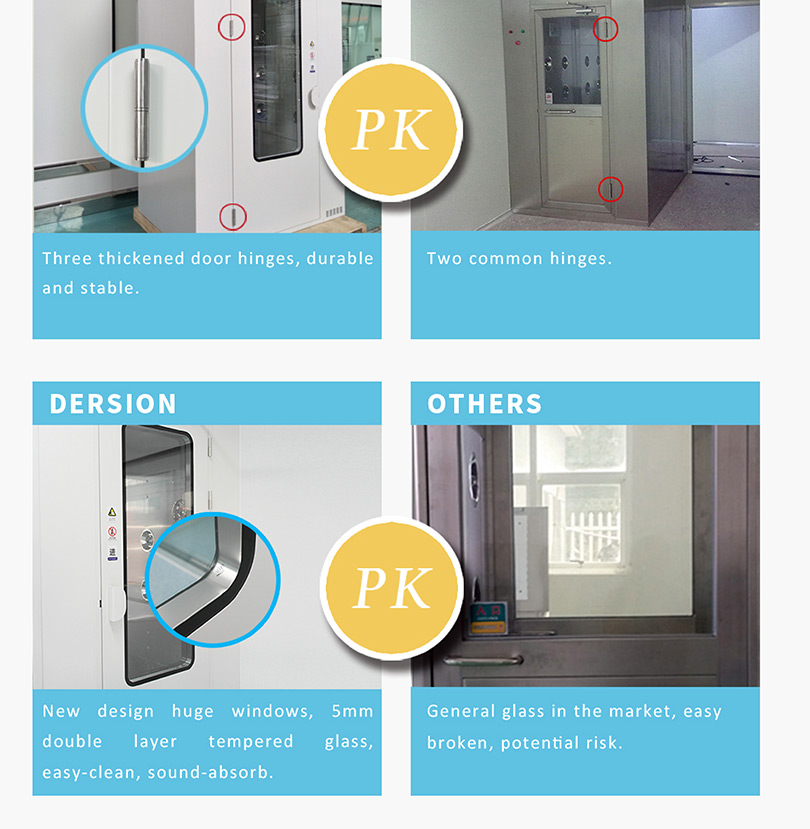

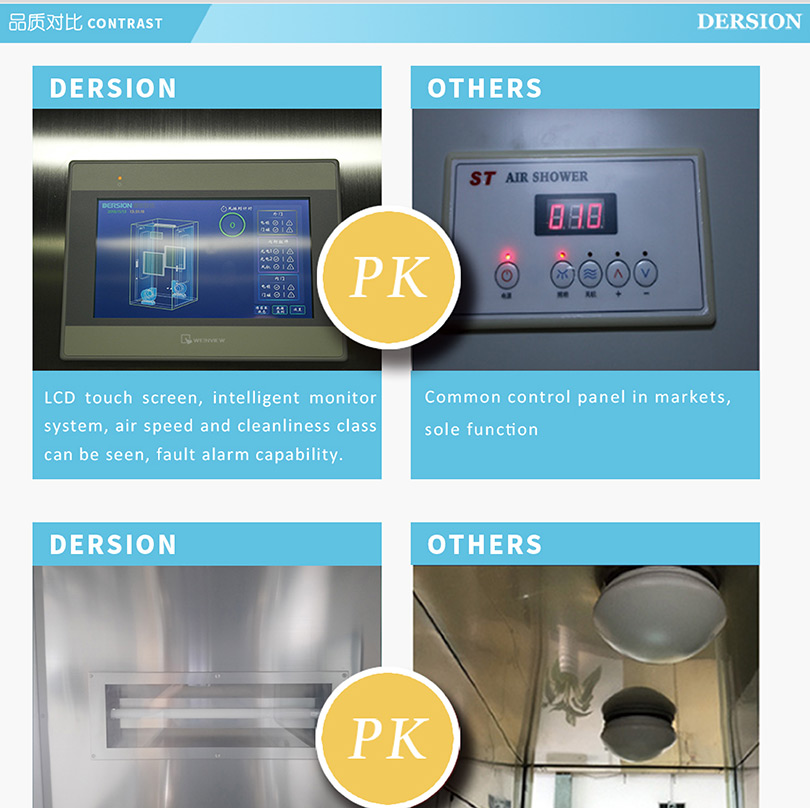

● Beautiful: Huge double-glazed windows; No visible welded joints; LCD touch screen.
● Reliable: Steel air-tight door with double glazing units made of tempered glass; dispensing technology, sealing class equal to IP6; Passed over one million times tests.

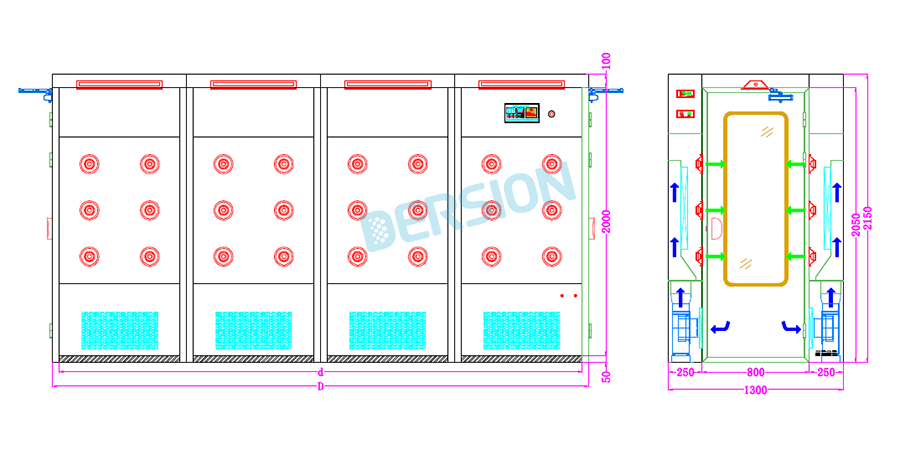

Standard Drawing:

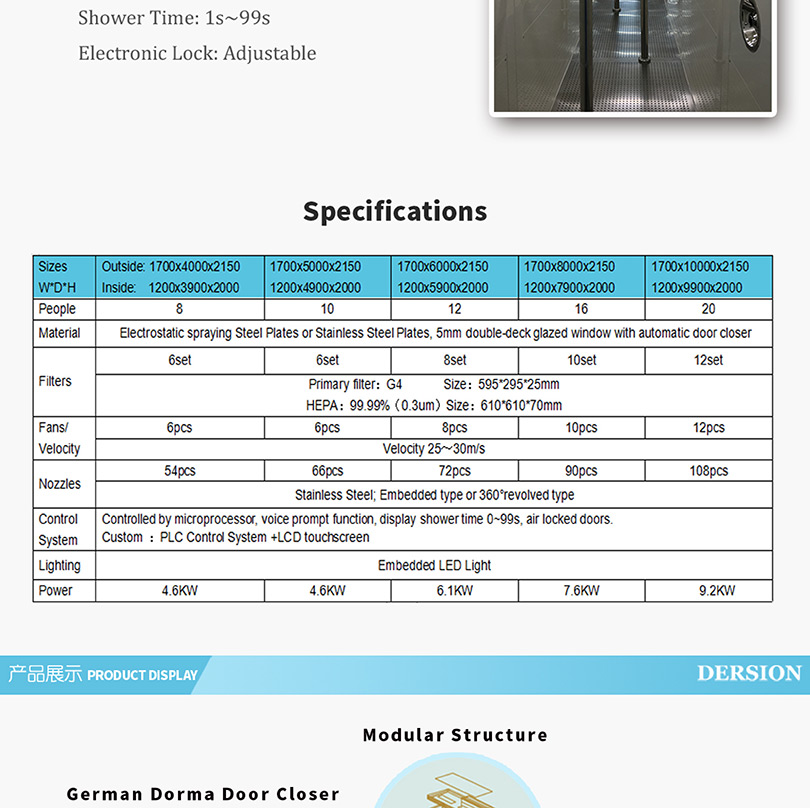

Specifications:

Sizes WDH	Outside: 1700x4000x2150 Inside: 1200x3900x2000	1700x5000x2150 1200x4900x2000	1700x6000x2150 1200x5900x2000	1700x8000x2150 1200x7900x2000	1700x10000x2150 1200x9900x2000
People	8	10	12	16	20
Material	Electrostatic spraying Steel Plates or Stainless Steel Plates, 5mm double-deck glazed window with automatic door closer
Filters	6set	6set	8set	10set	12set

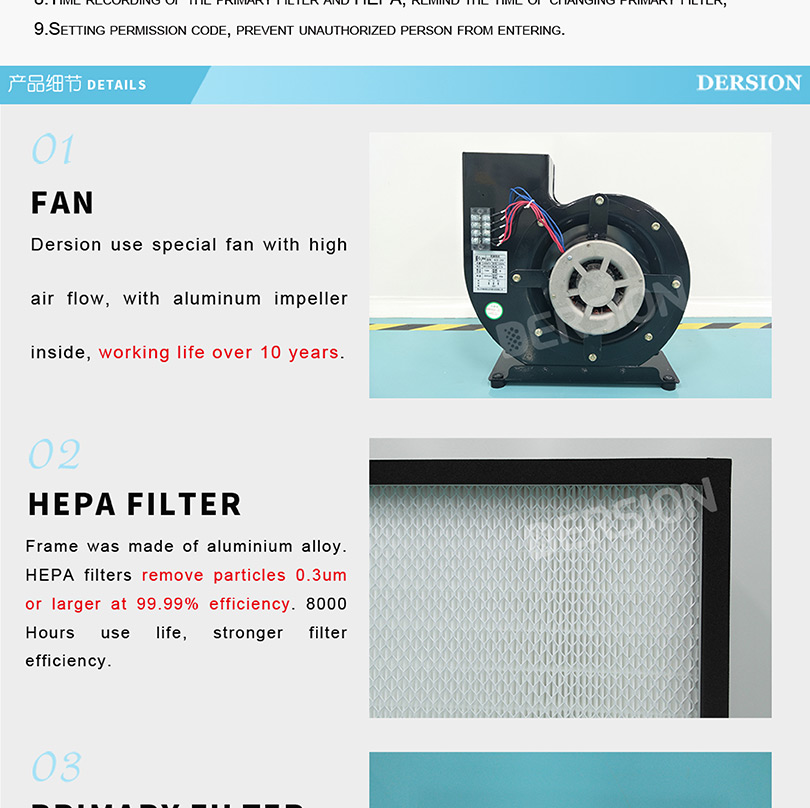

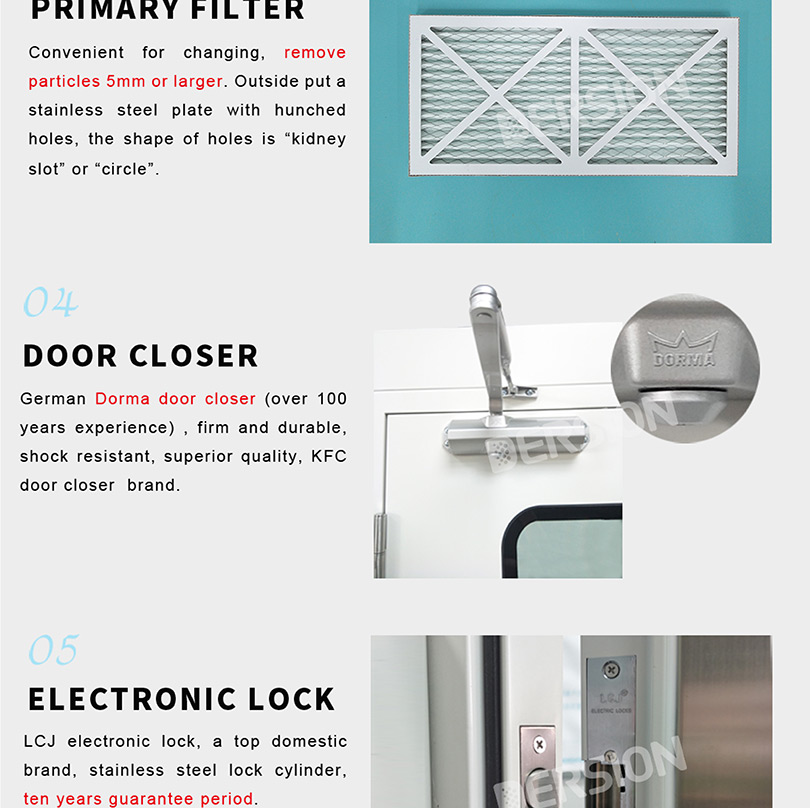

Filters	Primary filter：G4 Size：59529525mm HEPA：99.99%（0.3um）Size：61061070mm
Fans/ Velocity	6pcs	6pcs	8pcs	10pcs	12pcs
Fans/ Velocity	Velocity 25～30m/s
Nozzles	54pcs	66pcs	72pcs	90pcs	108pcs

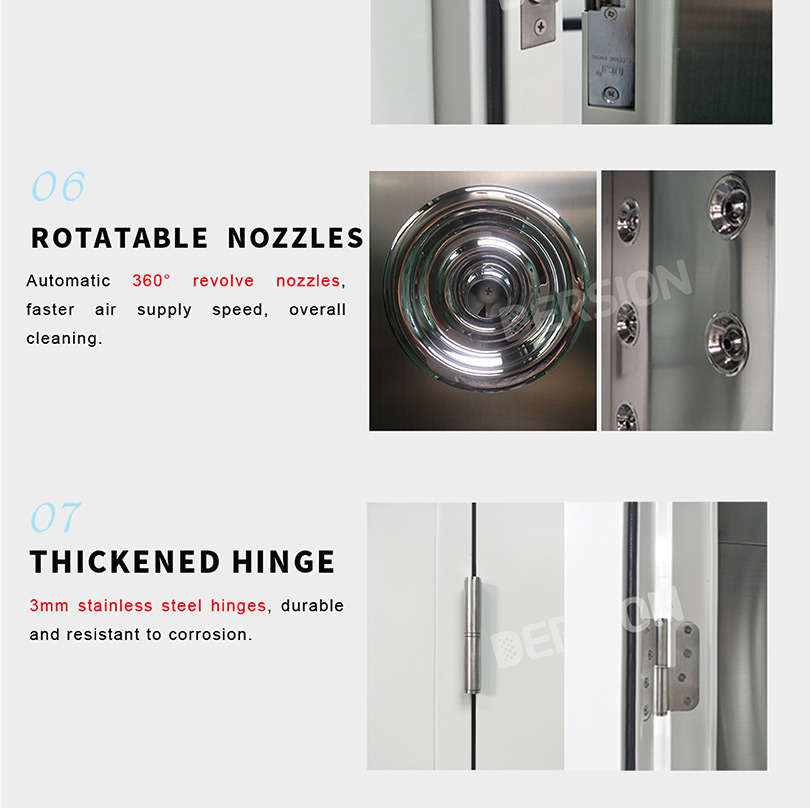

Nozzles	Stainless Steel; Embedded type or 360°revolved type
Control	Controlled by microprocessor, voice prompt function, display shower time 0~99s, air locked doors.
Control	Custom ：PLC Control System +LCD touchscreen

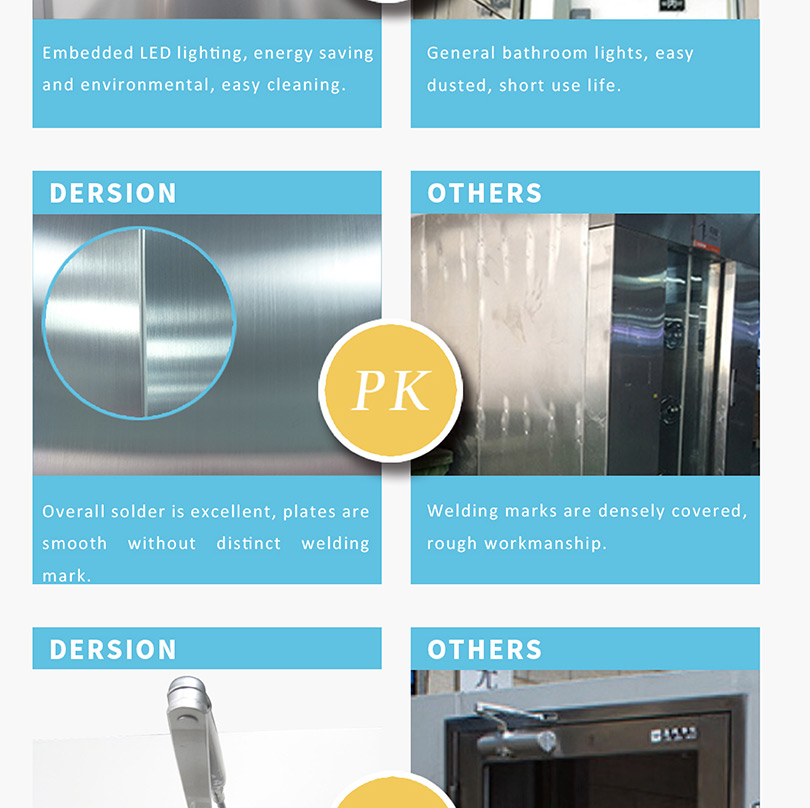

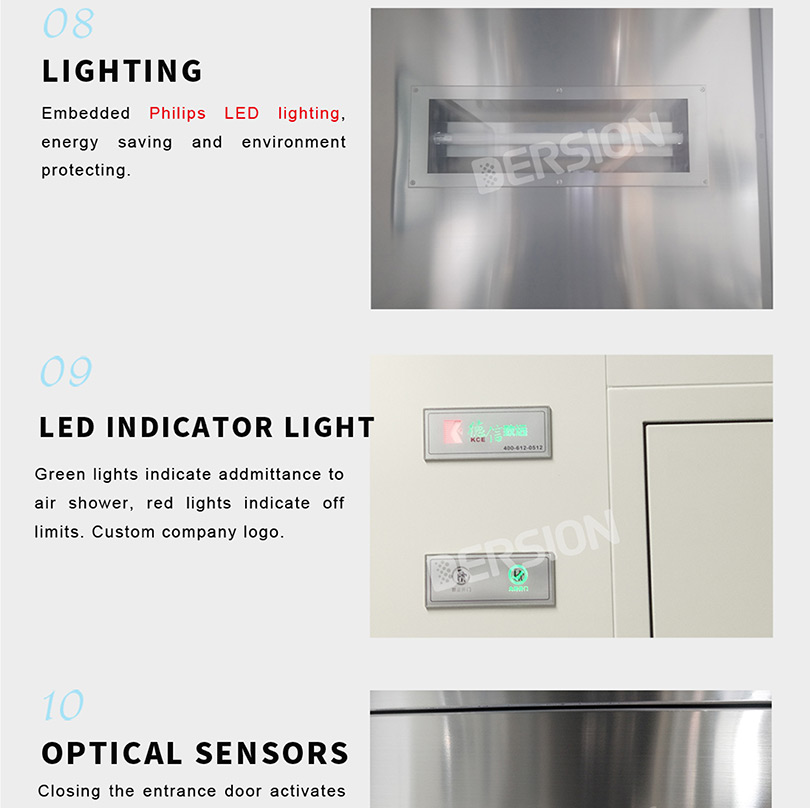

Lighting	Embedded LED Light
Power	4.6KW	4.6KW	6.1KW	7.6KW	9.2KW

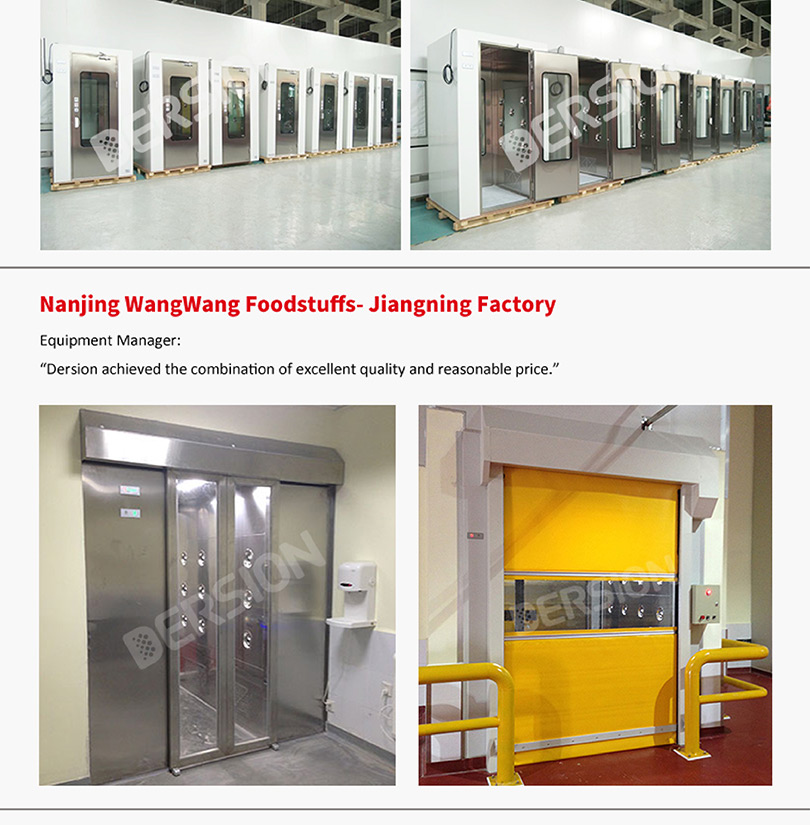

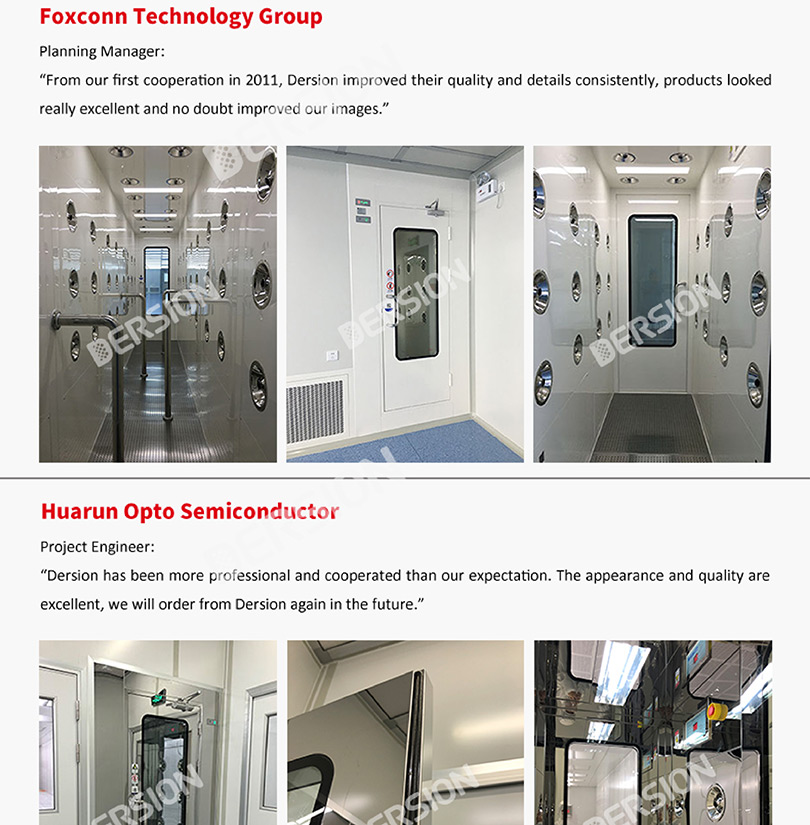

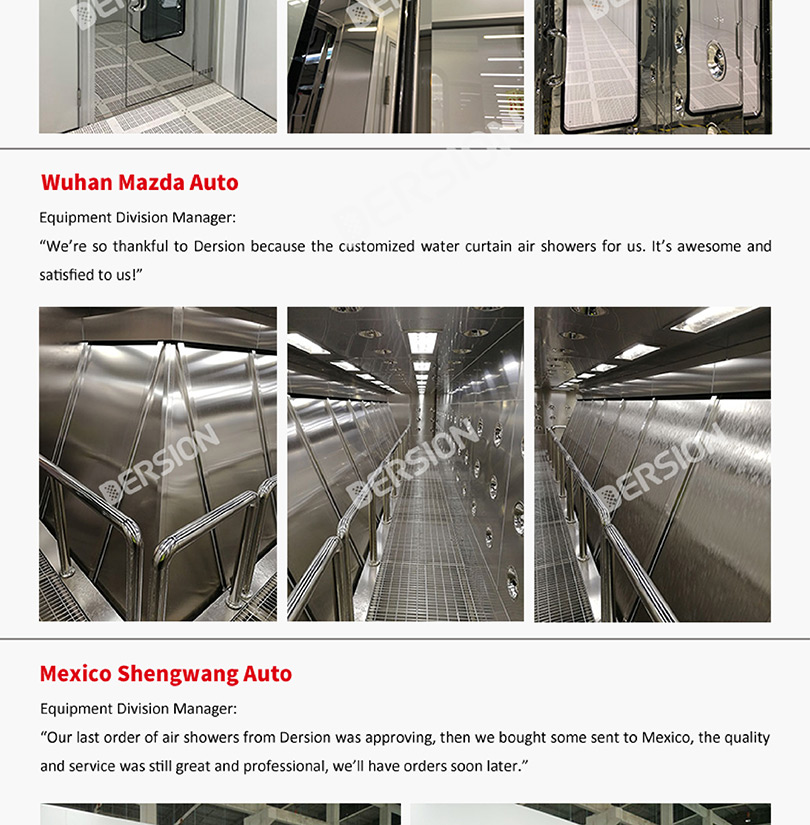

Project Cases:
