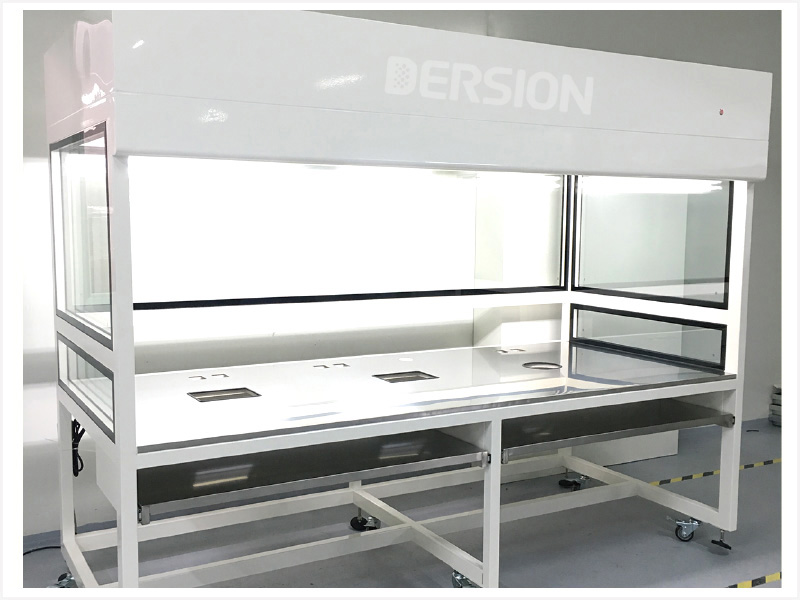

          Vertical Laminar Flow Clean Bench





	“Clean benches are one type of mini clean environment and offer a convenient method of controlling particulate contamination within a controlled work area.”(From Solid State Technology). As mini partial clean equipment, clean benches offer cleanliness 1-100 Class work zones. They can optimize technological conditions, protect the health of operators, improve products quality and increase the rate of finished products. They are used in a variety of industries, including semiconductor, pharmaceutical, medical device, health care, precision instrument, food, aerospace, nanotechnology, disk drive, injection molding and automotive, and so on.

	Vertical laminar flow clean benches are the most popular products. They direct HEPA-filtered laminar air downward over the work area to provide 1-100 cleanliness class conditions and protect your work from contamination. Dersion has three types purifier vertical clean benches. This one is the traditional type.






                            Get A Quote


瀏覽次數：
















                                    Product Features:

● Universal wheels with bolt fastening, reinforce the wheels, no more skew problem;

● Main material is stainless steel plates electrostatic sprayed, stable worktable;

● Downward air flows prevent the unfiltered outside air from passing into operation zones;

● LED panel lighting, bright and soft lighting, didn’t cause visual fatigue.

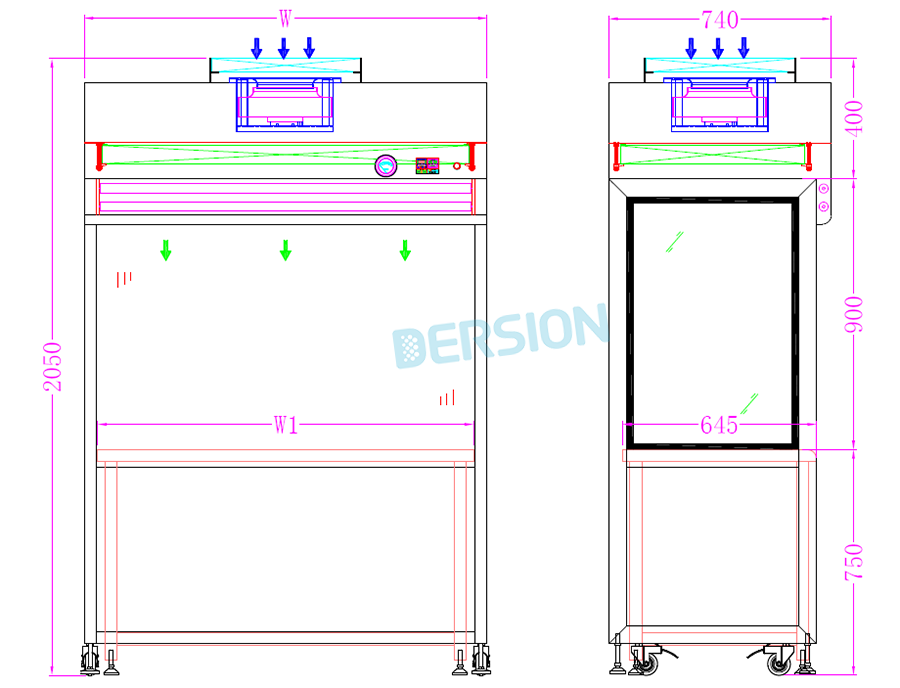

Standard Drawing:









	Specifications:









					Sizes: W*D*H

					  Outside:  1040x740x2000

					    Inside:   950x645x800

					   1340x740x2000

					  1250x645x800

					      1640x740x2000

					   1550x645x800

					    1950x740x2000

					  1860x645x800





					People

					1

					1-2

					2-3

					3-4





					Fan Velocity  (m³/h)

					905

					1205

					1510

					1810





					Air Speed (m/s)

					0.45m/s±20%





					Cleanliness

					Class 100(USA 209E Standard)





					Class







					Filter System

					99.99%@0.3um





					915x610x70-1pcs

					1220x610x70-1pcs

					915x610x70-1pcs

					610x610x70-1pcs

					915x610x70-2pcs





					Noise

					＜56dB

					＜56dB

					＜58dB

					＜60dB





					0.2m right ahead of the cabinet and 1.2m above floor





					 Material of Cabinet table

					Brushed Stainless Steel SUS304





					Power

					220V  150W

					220V  175W

					220V  250W

					220V  275W

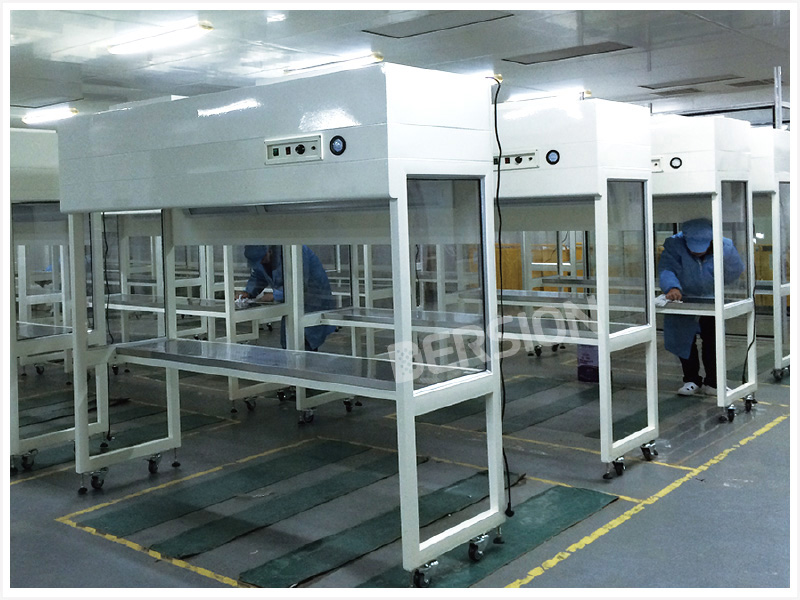

	Case Share:







	Shijia Optics





	Dafeng (Quanta Shanghai Manufacturer)
