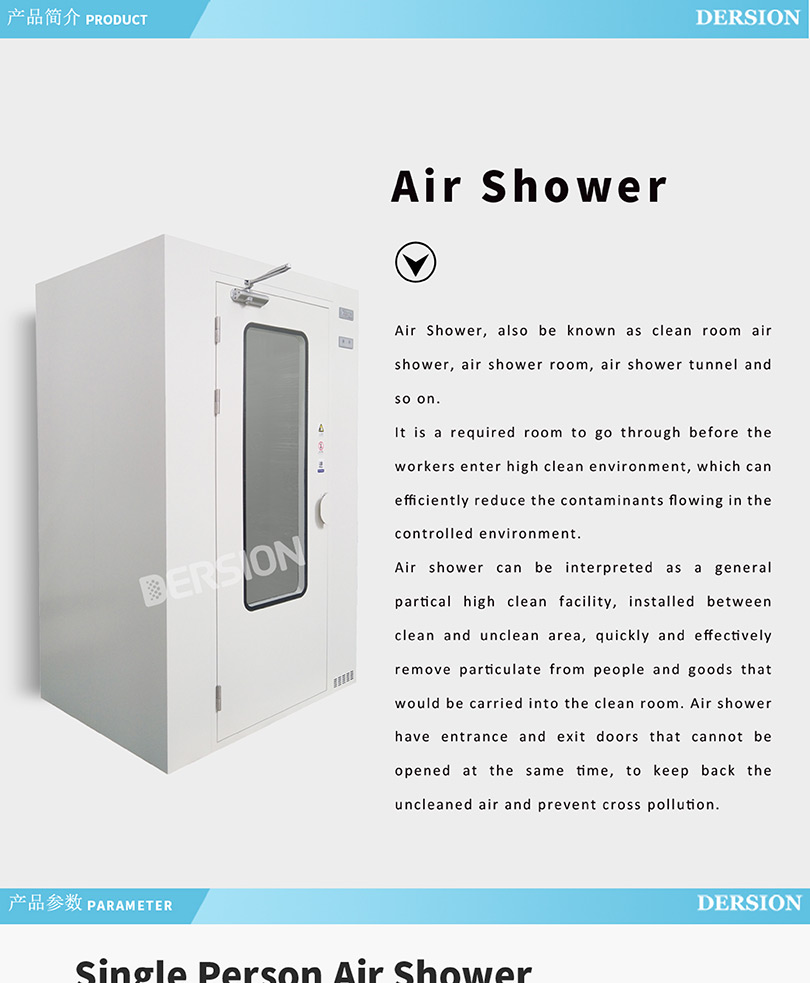

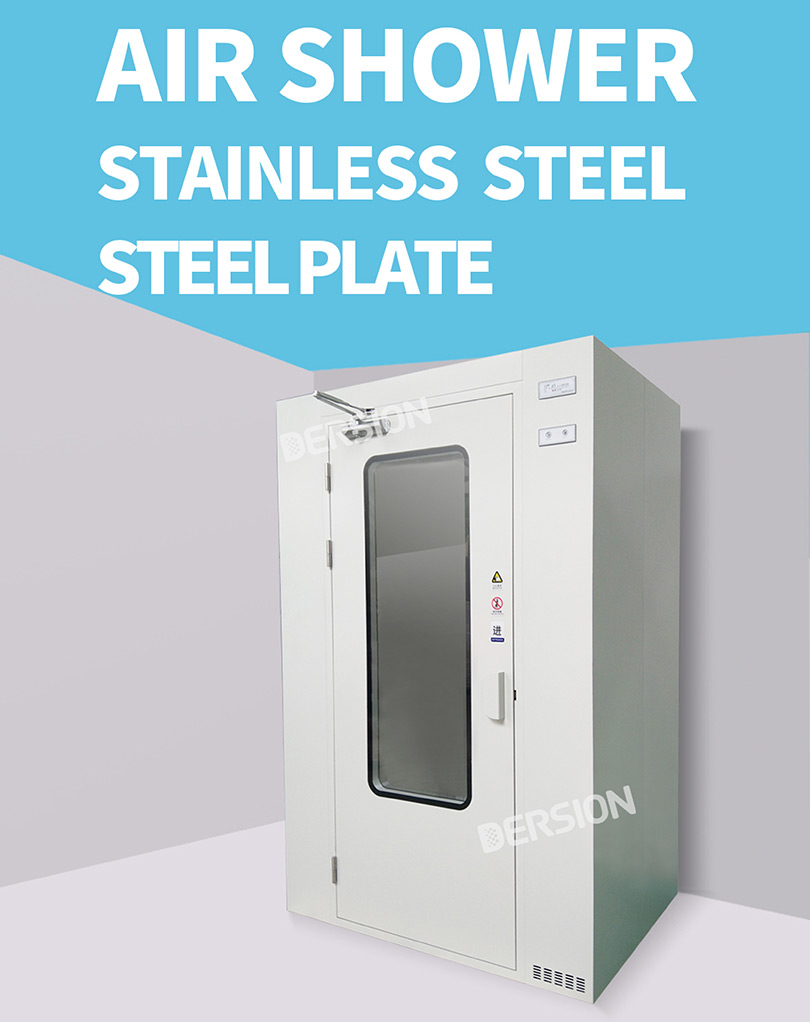

          Single Person Air Showers








                            Get A Quote


瀏覽次數：

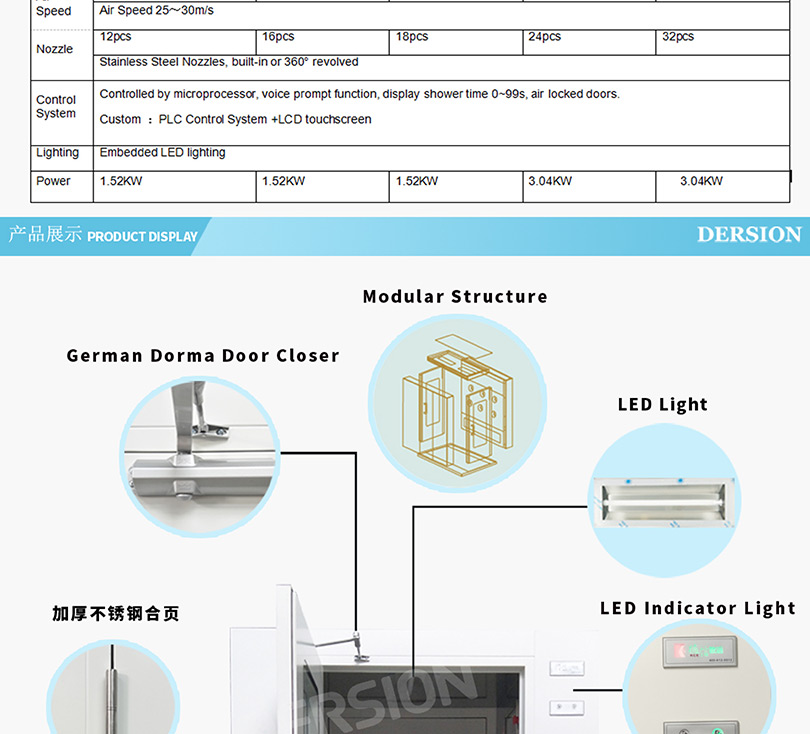

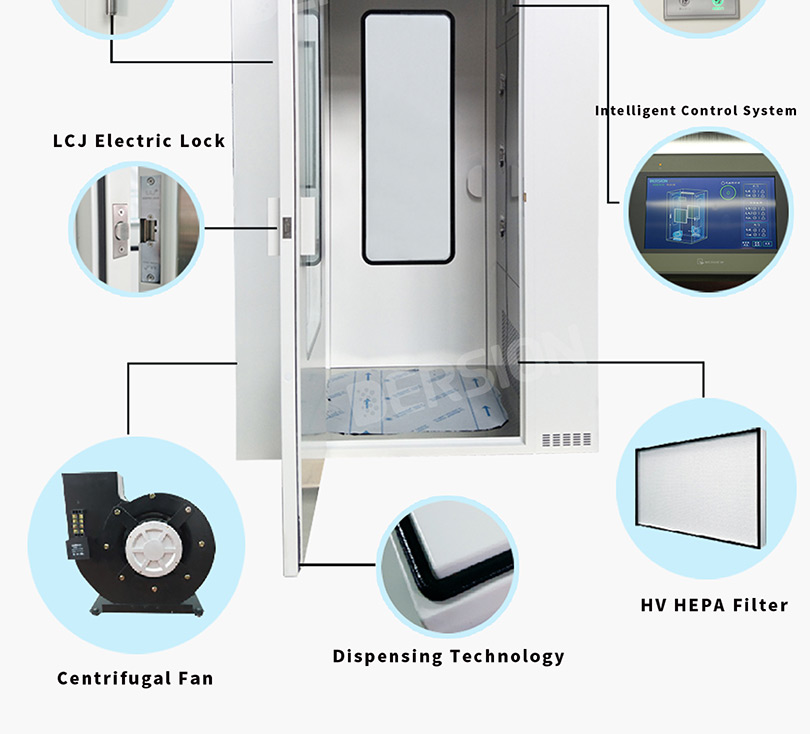

                                    Product Features:

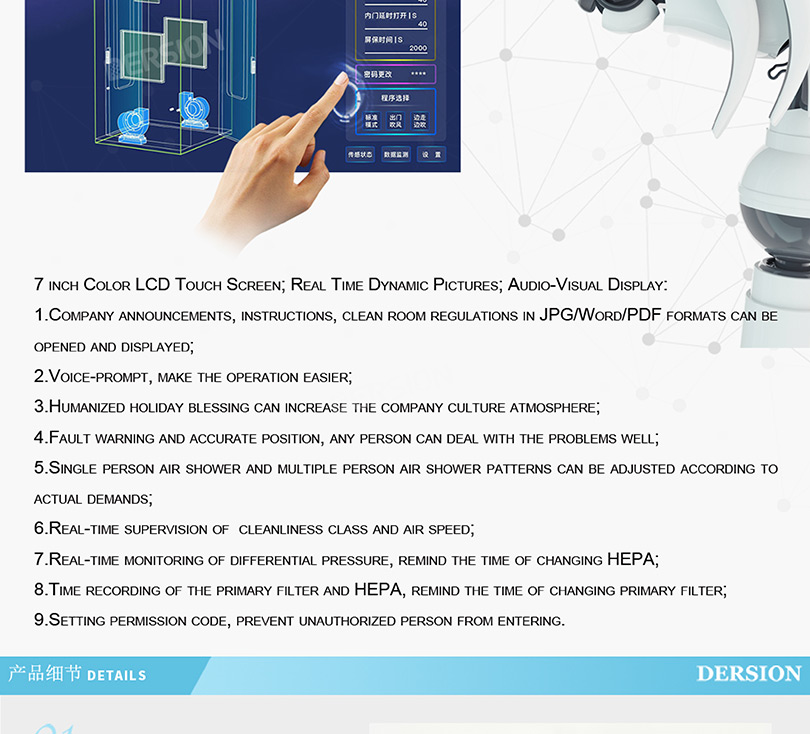

	● Intelligent: Future Series Control System; ARM master, double CPU, 280MHZ; Several shower patterns; Voice prompt, pictures and videos display; Intelligent judging about link and running status; Fault self-detection capability; Reserved sockets for transducers of air speed, air pressure, cleanliness class.

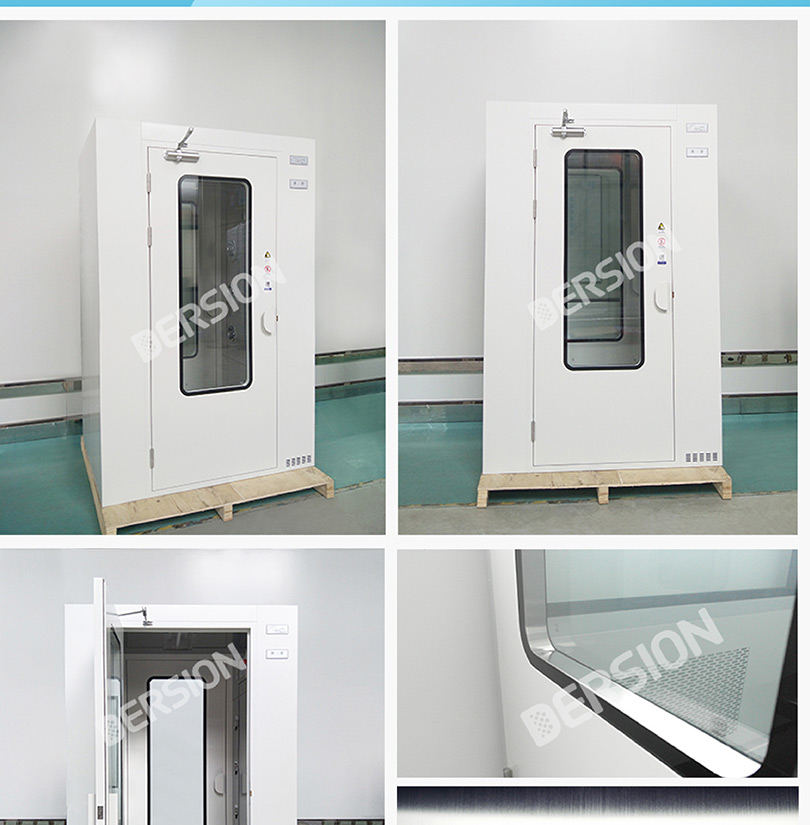

	● Beautiful: Huge double-glazed windows; No visible welded joints; LCD touch screen.

	● Reliable: Steel air-tight door with double glazing units made of tempered glass; Dispensing technology, sealing class equal to IP6; Passed over one million times tests.

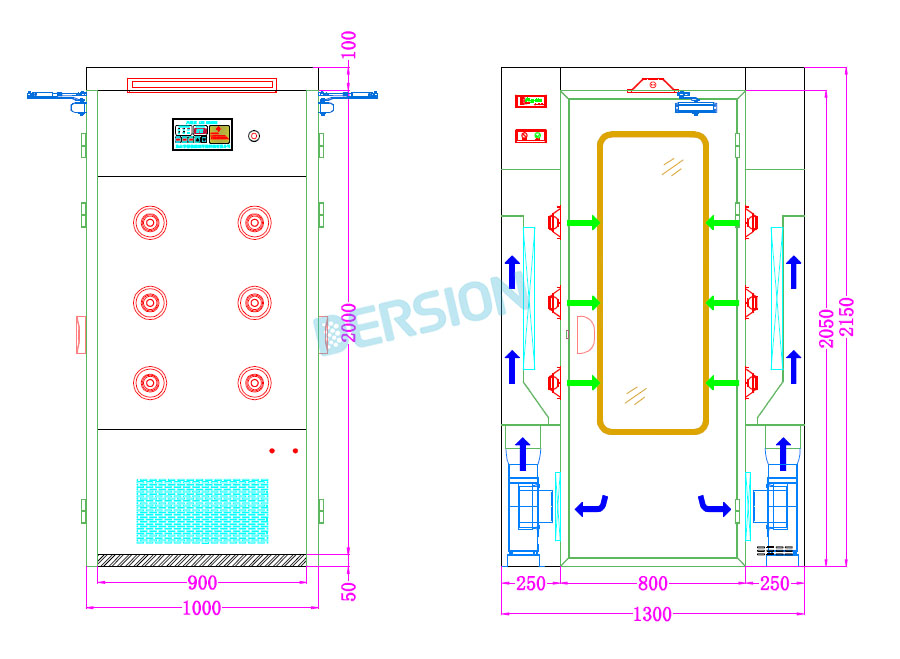

Standard Drawing:

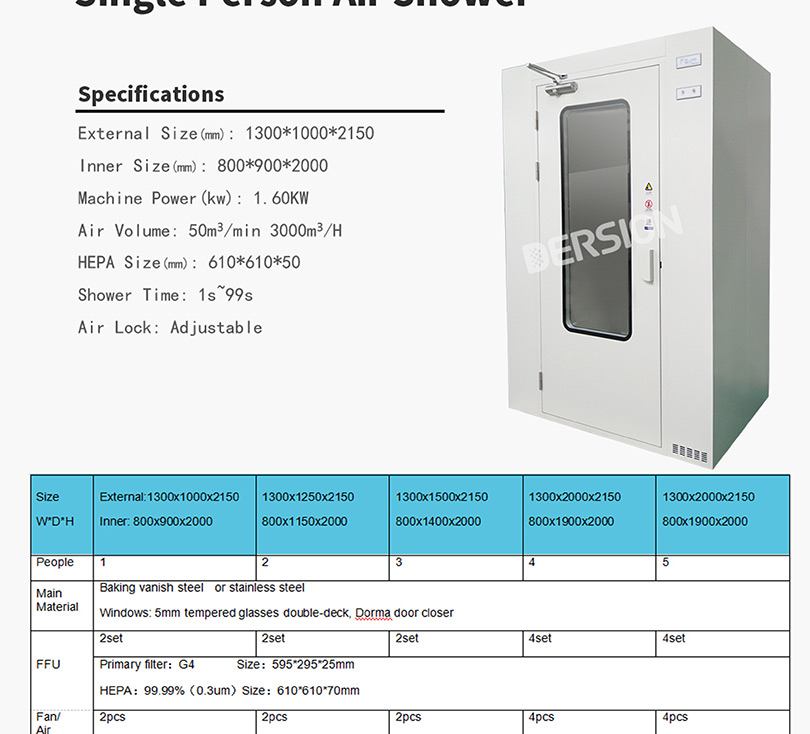

	Specifications:









					Size

					W*D*H

					   External:  1300x1000x2150


						       Inner:  800x900x2000



					   1300x1250x2150

					  800x1150x2000

					     1300x1500x2150

					    800x1400x2000

					    1300x2000x2150

					   800x1900x2000

					   1300x2500x2150

					   800x2400x2000





					People

					1

					2

					3

					4

					5





					Main Material

					Baking vanish steel  or stainless steel

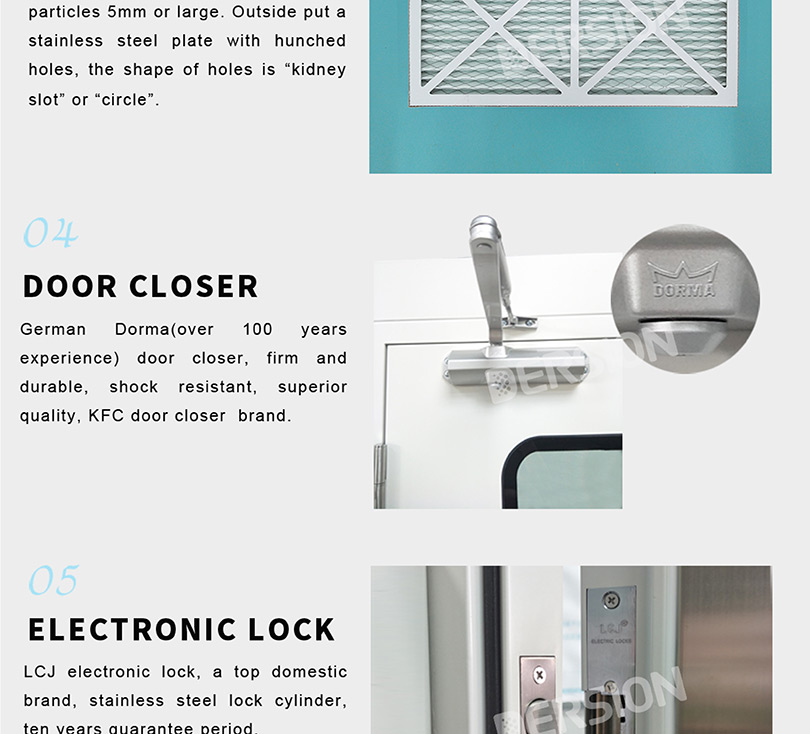

					Windows: 5mm tempered glasses double-deck, Dorma door closer

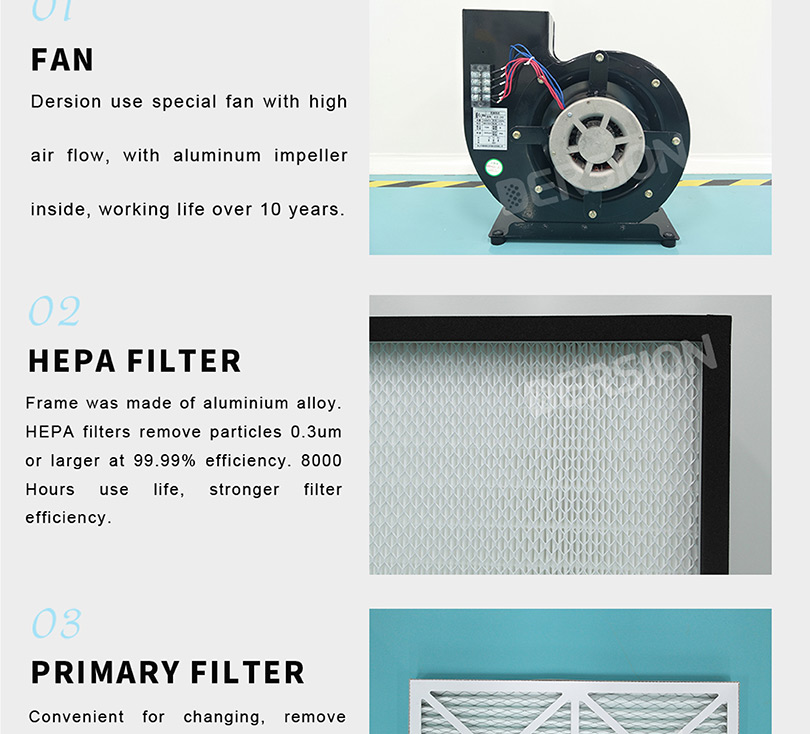

					FFU

					2set

					2set

					2set

					4set

					4set





					Primary filter：G4       Size：595*295*25mm

					HEPA：99.99%（0.3um）Size：610*610*70mm





					  Fan/     Air Speed



					2pcs

					2pcs

					2pcs

					4pcs

					4pcs





					Air Speed 25～30m/s





					Nozzle

					12pcs

					16pcs

					18pcs

					24pcs

					32pcs

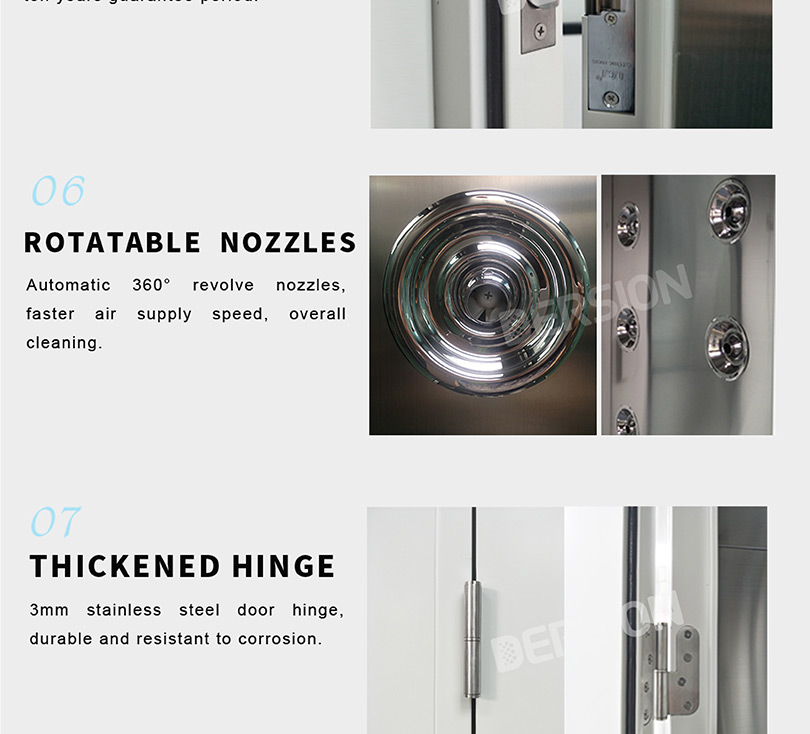

					Stainless Steel Nozzles, built-in or 360° revolved





					Control System

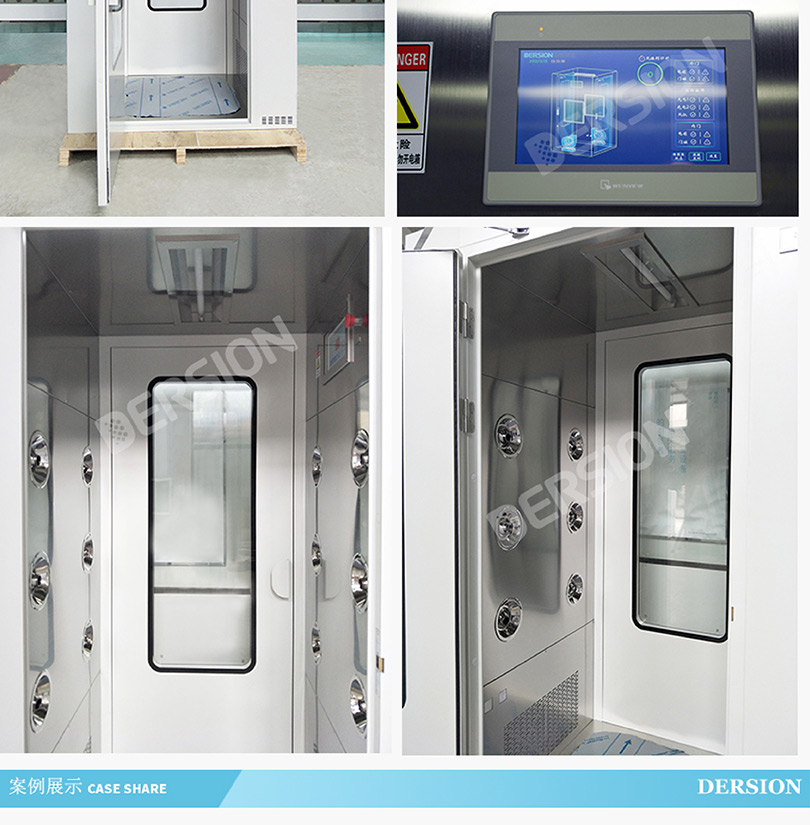

					Controlled by microprocessor, voice prompt function, display shower time 0~99s, air locked doors.





					Custom ：PLC Control System +LED touchscreen

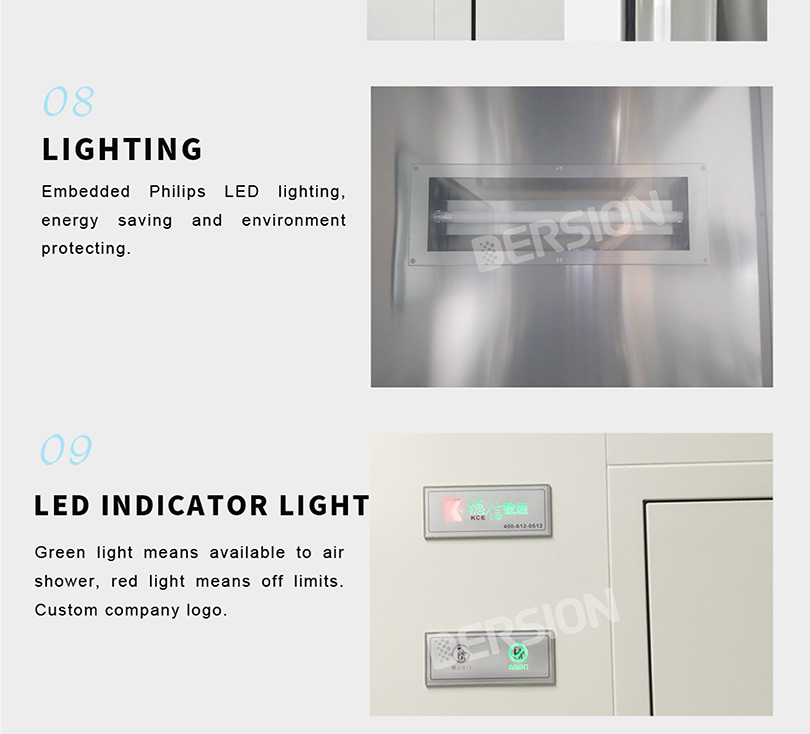

					Lighting

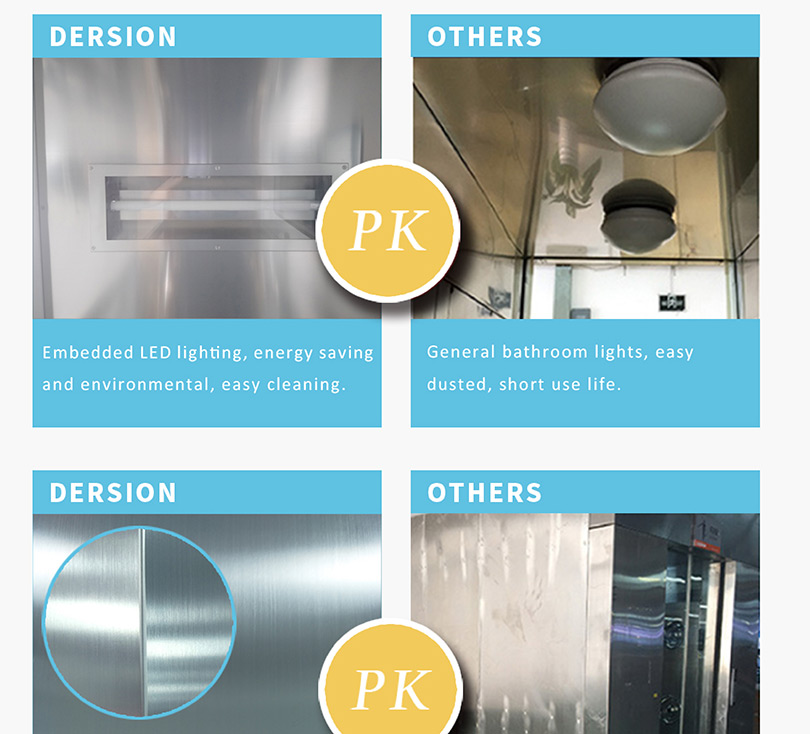

					Embedded LED lighting





					Power

					1.52KW

					1.52KW

					1.52KW

					3.04KW

					3.04KW

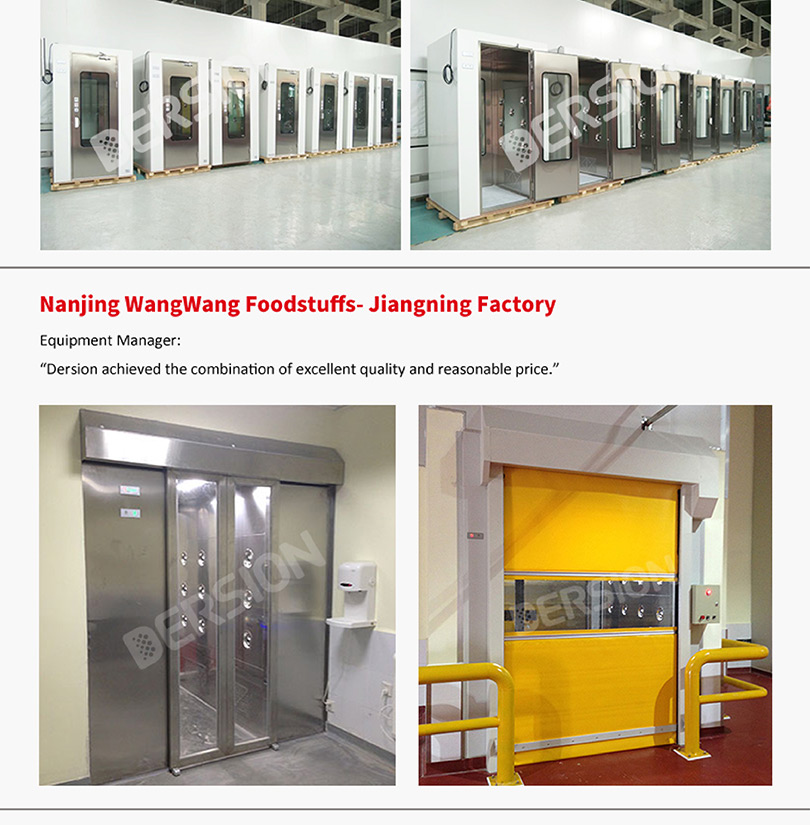

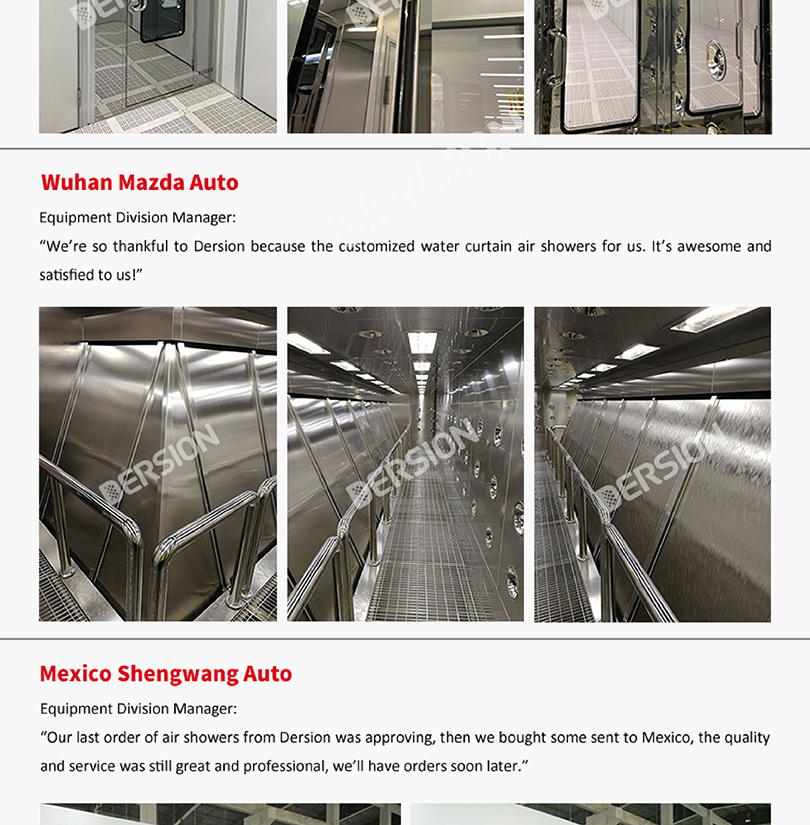

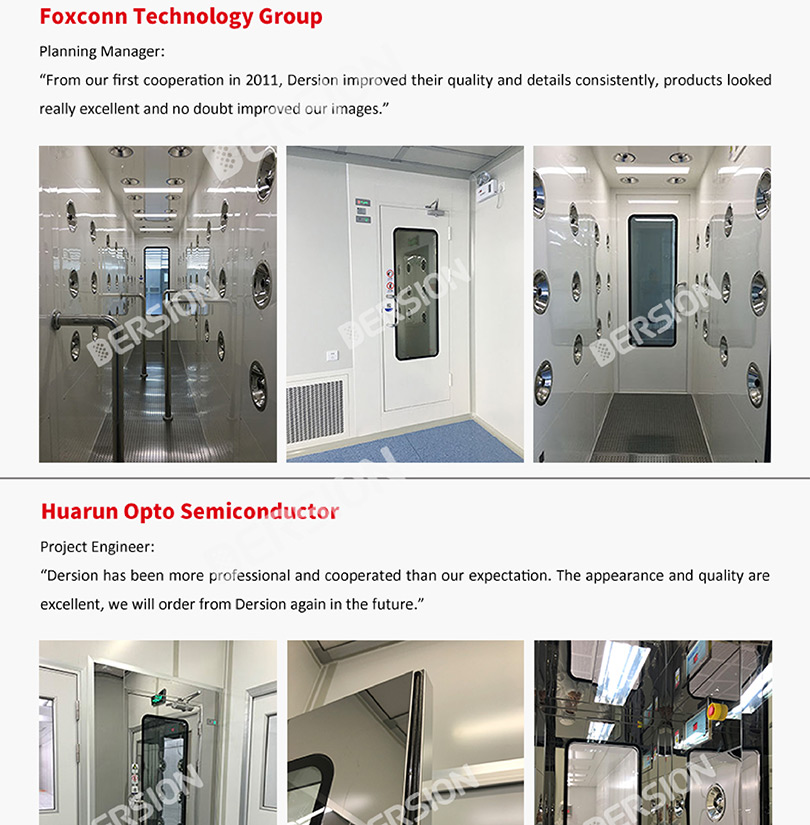

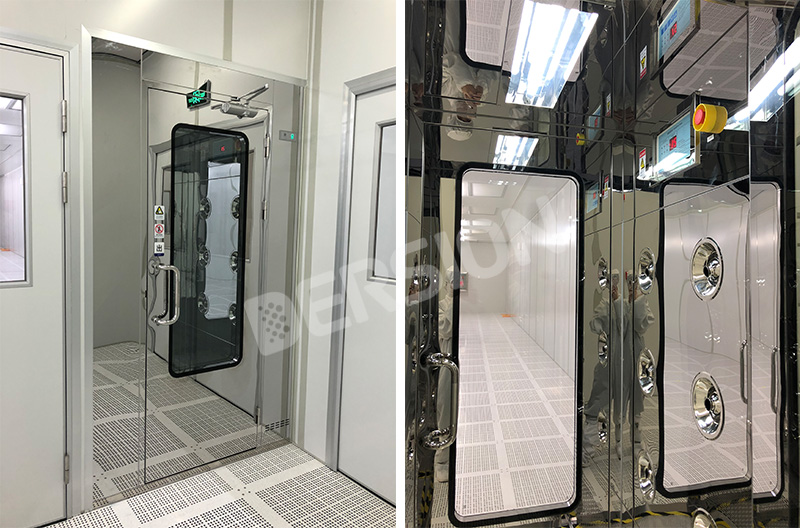

	Project Case:







	Xiaozi Glassworks











	Huarun Micro-Electronics
