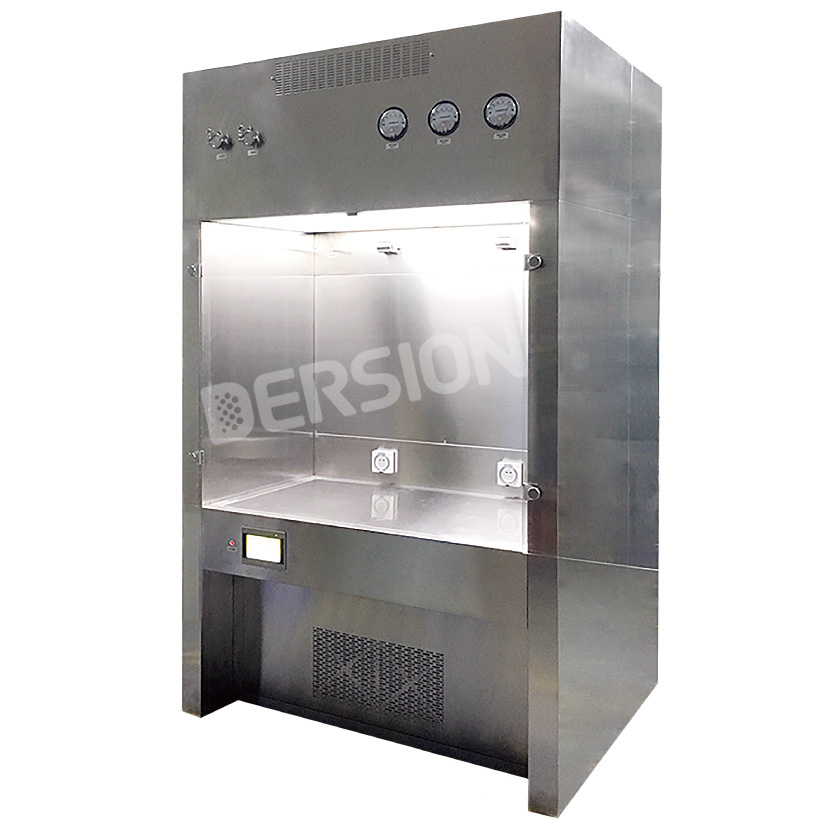

          Weigh Cabinet





	A air clean machine mostly used in pharmaceutical, cosmetics and micro-organism studies, science laboratories, provides a clean zone for people to do such as powder weigh work. This weigh cabinet provides a vertical airflow, part of the purified air circle in the work zone, and part of the air discharged, informed a negative pressure environment avoid the powder spread, to keep the whole clean rooms’ cleanliness level.






                            Get A Quote


瀏覽次數：
















                                    Product Features:


	● Liquid HEPA filter, meet cGMP standard;

	● LCD touchscreen make the operation convenient;

	● Air speed adjusted automatically, run in the steady state;

	● PAO dust-send window and DOP test window;

	● Collocate with Acrylic doors and operation gloves to assure the security.

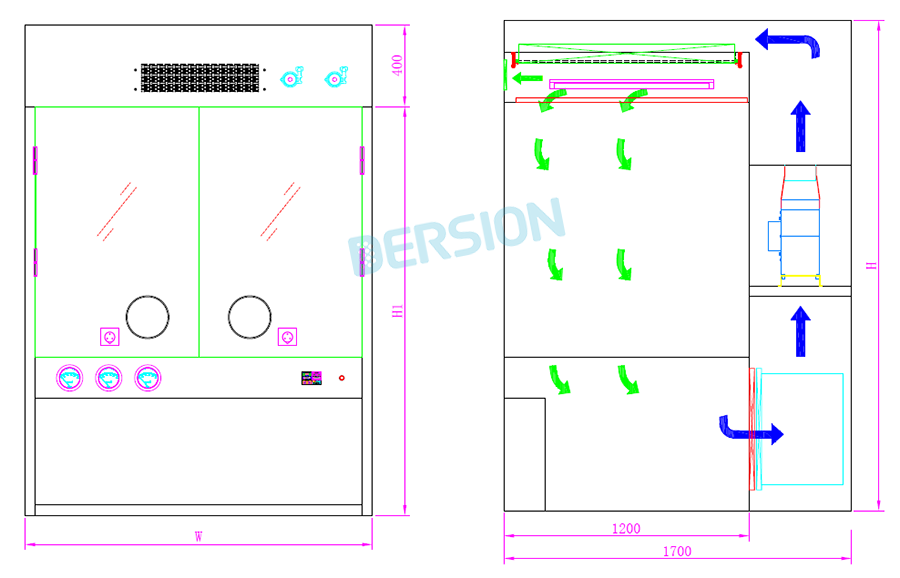

Standard Drawing:











	Technical Specifications:











						Dimensions



						W*D*H



					         KCE-AMB-1300

					          KCE-AMB-1700

					         KCE-AMB-2400





					Overall

					  1300*1300*2400

					  1700*1300*2400

					  2400*1700*2400





					Working Area

					 1200*800*1200

					1600*800*1200

					2300*1200*2000





					Material

					Stainless Steel SUS304(Polished or brushed surface)





					Clean Level

					ISO 5





					Air Speed

					0.2-0.6m/s





					        Air output(Settable)

					1800CMH

					2300CMH

					5000CMH





					Exhaust Air(Settable)

					540CMH

					690CMH

					1500CMH





					Filter Units

					1150x630x93x1片

					1550x630x93x1片

					1100x1030x93x2片





					G4/F7/H14（99.99%@0.3um）





					Manometer

					Dwyer 0-150Pa      0-250Pa      0-500Pa





					Test Window

					SUS PAO dust sent mouth and DOP test mouth





					Bacterial Colony

					≤0.5/dish.hour (dia. 90mm Culture Medium Dish)





					Power

					380W

					550W

					760W

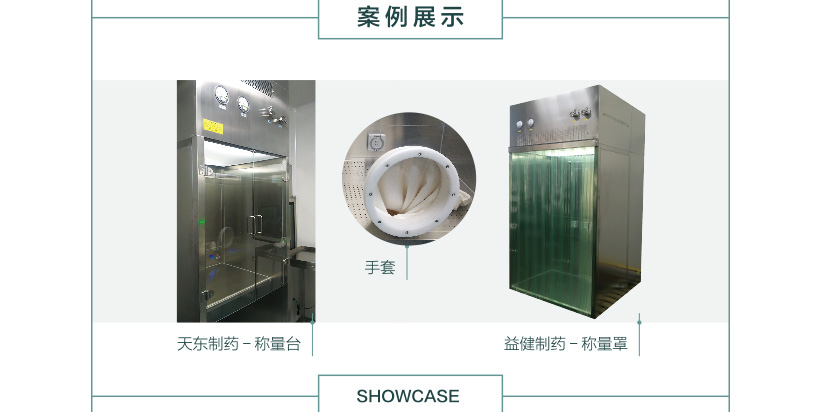

	Case Share:
