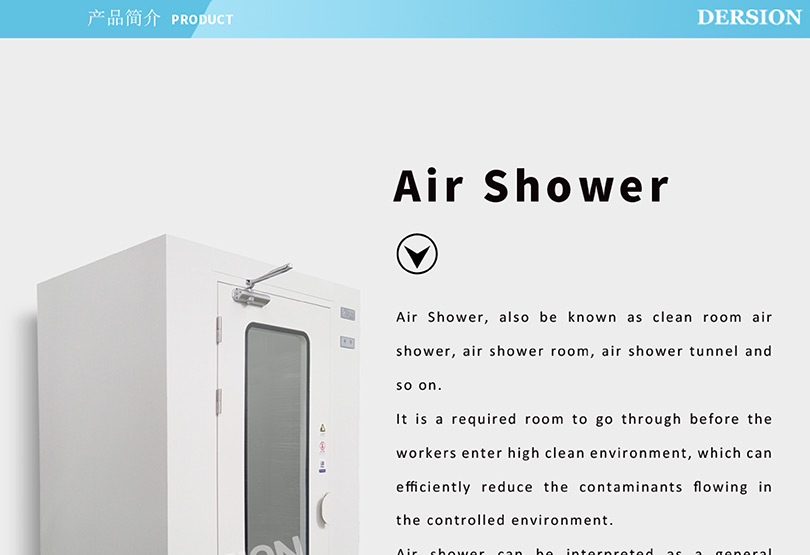

          Multiple Person Air Shower










                            Get A Quote


瀏覽次數：
















                                    Product Features:


	●Intelligent: Future Series Control System; ARM master, double CPU, 280MHZ; Several shower patterns; Voice prompt, pictures and videos display; Intelligent judging about link and running status; Fault self-detection capability; Reserved sockets for transducers of air speed, air pressure, cleanliness class.

	●Beautiful: Huge double-glazed windows; No visible welded joints; LCD touch screen.

	●Reliable: Steel air-tight door with double glazing units made of tempered glass; Dispensing technology, sealing class equal to IP6; Passed over one million times tests.

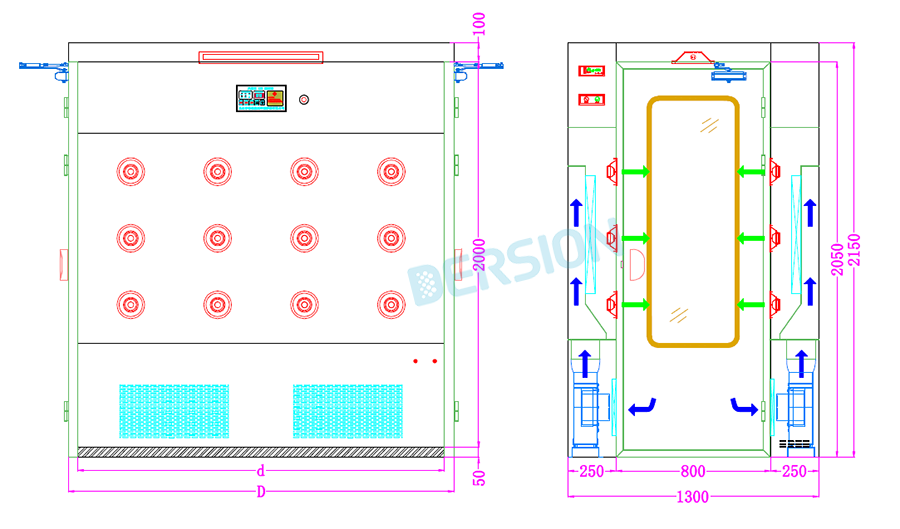

Standard Drawing:

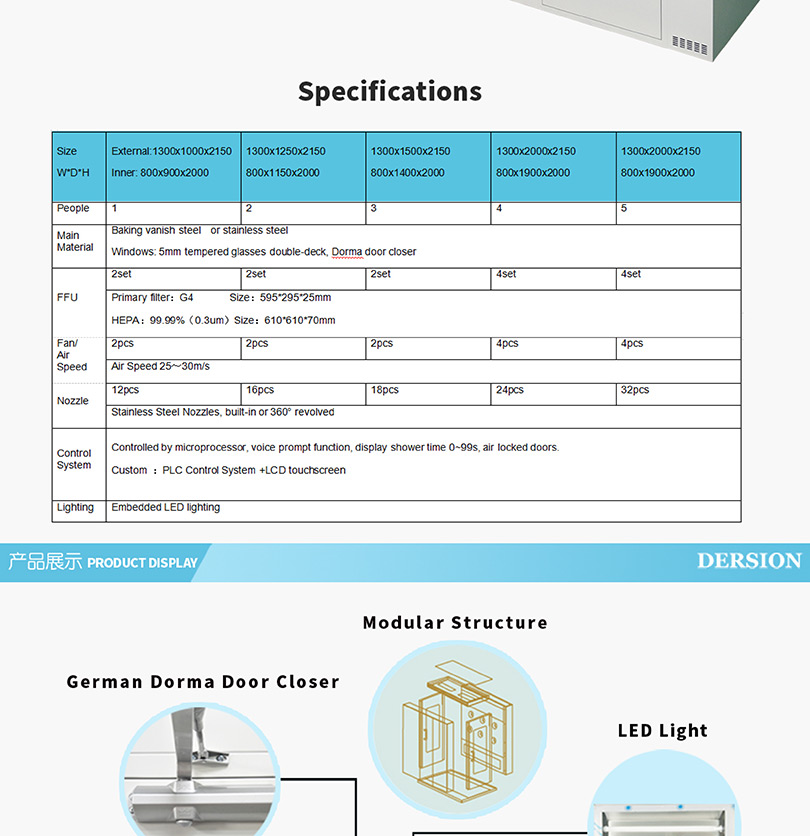

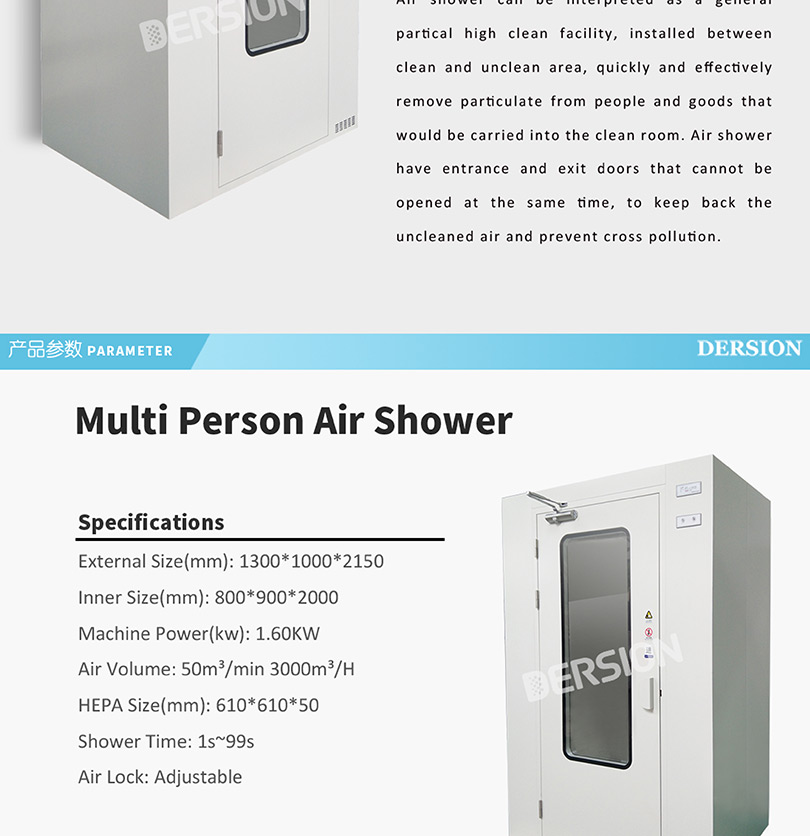

	Specifications:









					Size

					W*D*H



					  External: 1300x1000x2150

					Inner:    800x900x2000







					  1300x1250x2150

					 800x1150x2000

					  1300x1500x2150

					 800x1400x2000

					  1300x2000x2150

					  800x1900x2000

					  1300x2500x2150

					  800x2400x2000





					People

					1

					2

					3

					4

					5





					Main Material

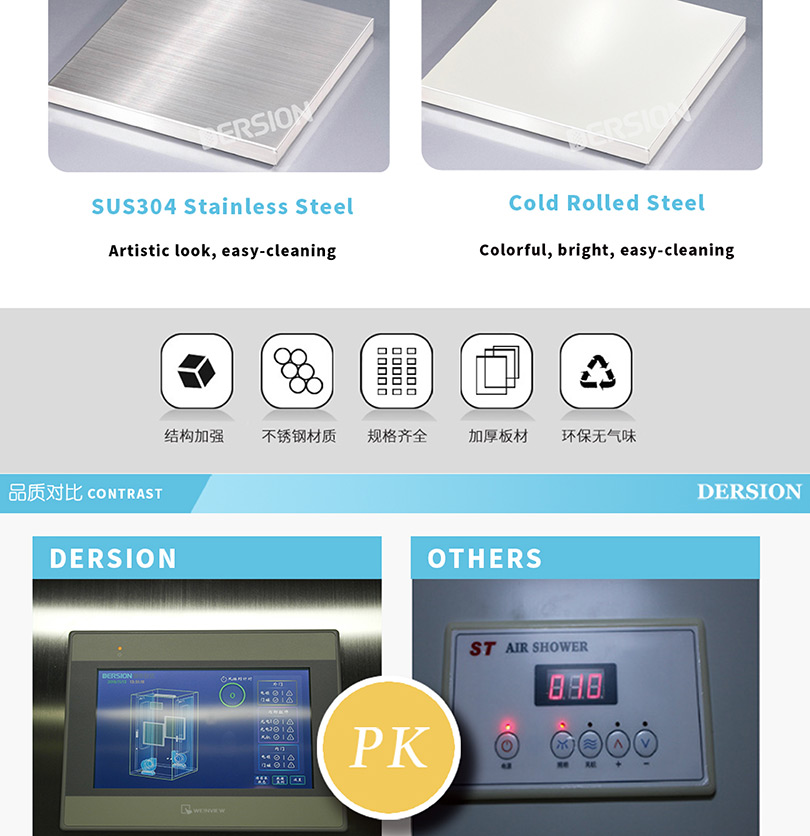

					Baking vanish steel  or stainless steel

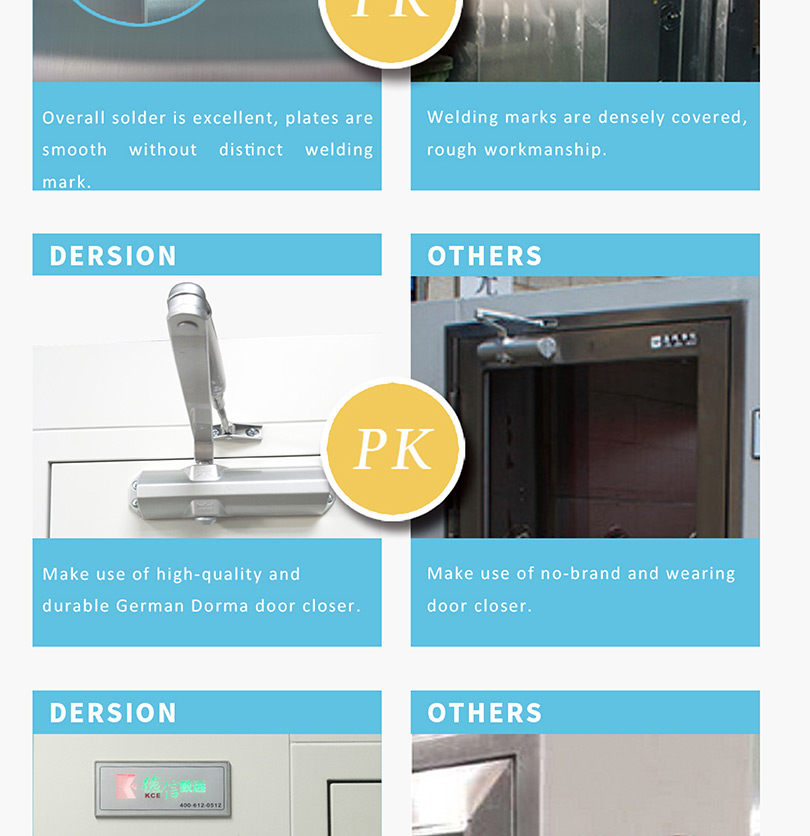

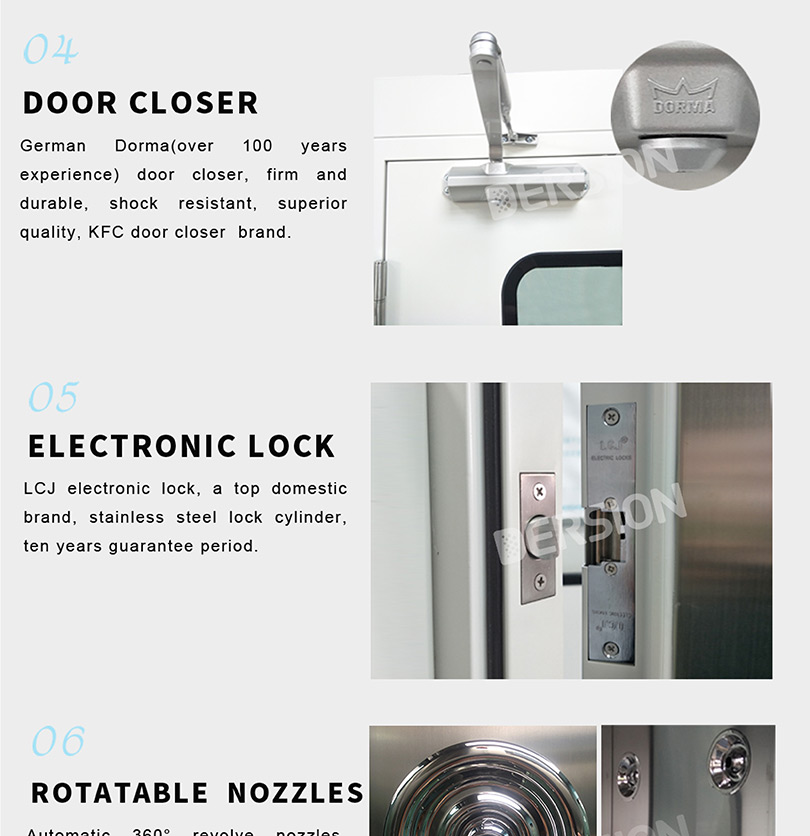

					Windows: 5mm tempered glasses double-deck, Dorma door closer





					FFU

					2set

					2set

					2set

					4set

					4set

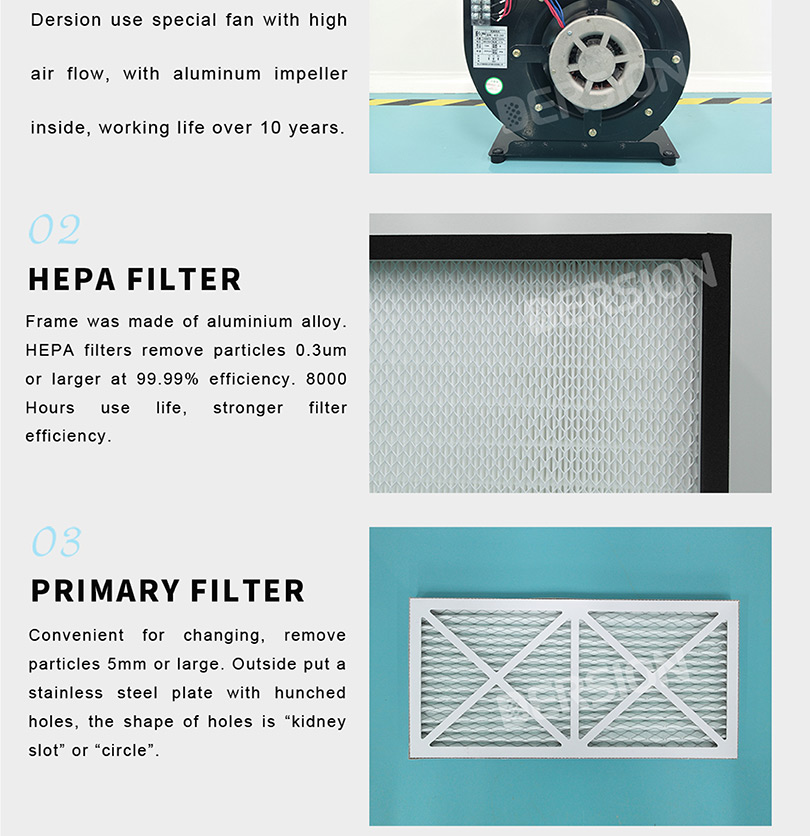

					Primary filter：G4       Size：595*295*25mm

					HEPA：99.99%（0.3um）Size：610*610*70mm





					  SFan/Air peed



					2pcs

					2pcs

					2pcs

					4pcs

					4pcs





					Air Speed 25～30m/s





					Nozzle

					12pcs

					16pcs

					18pcs

					24pcs

					32pcs





					Stainless Steel Nozzles, built-in or 360° revolved





					 Control System

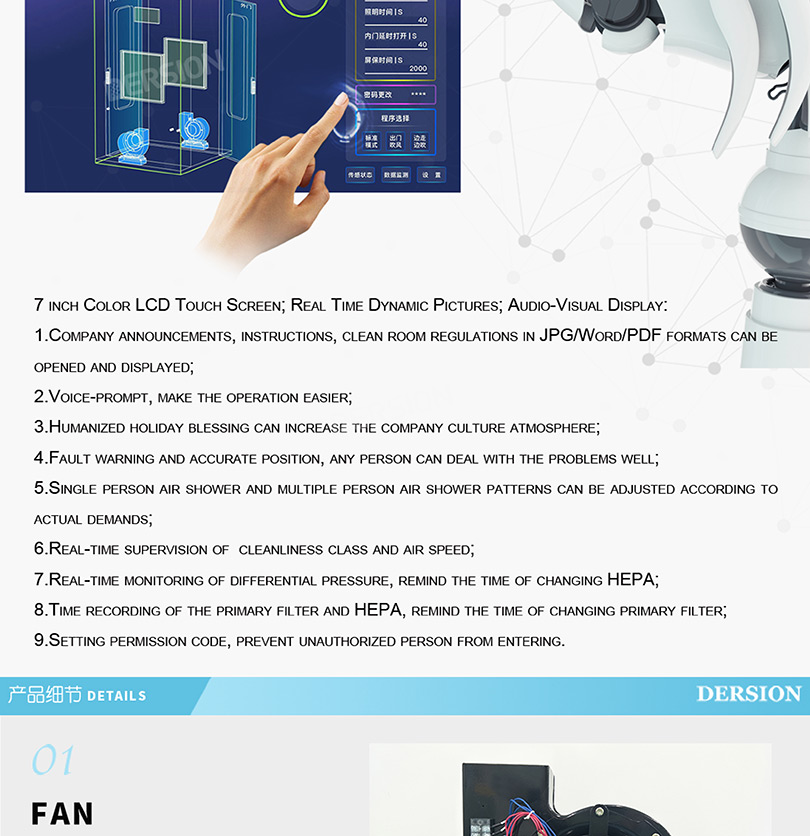

					Controlled by microprocessor, voice prompt function, display shower time 0~99s, air locked doors.





					Custom ：PLC Control System +LED touchscreen

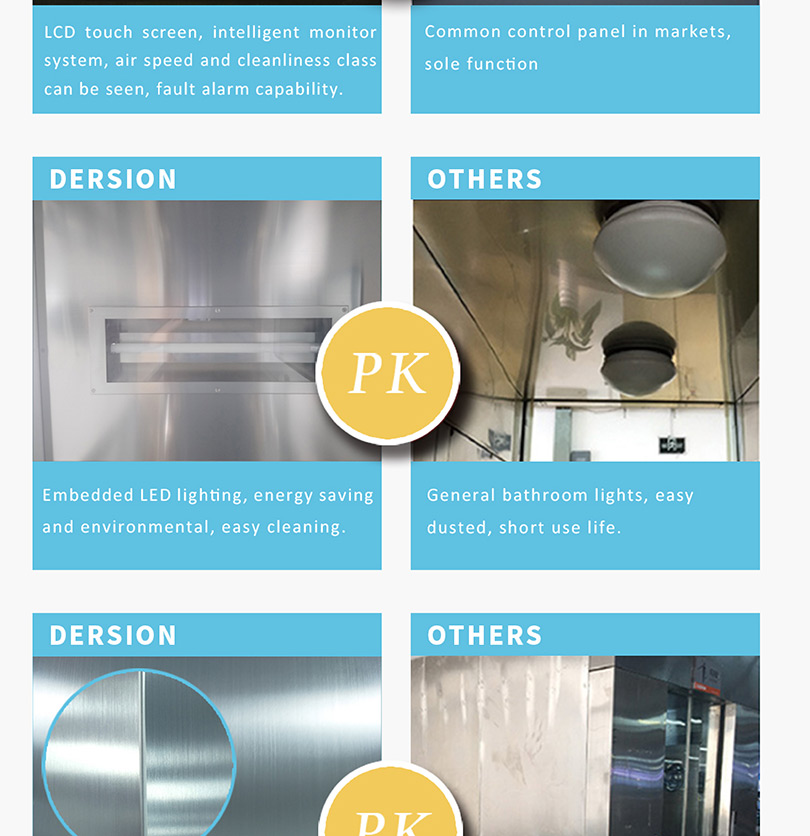

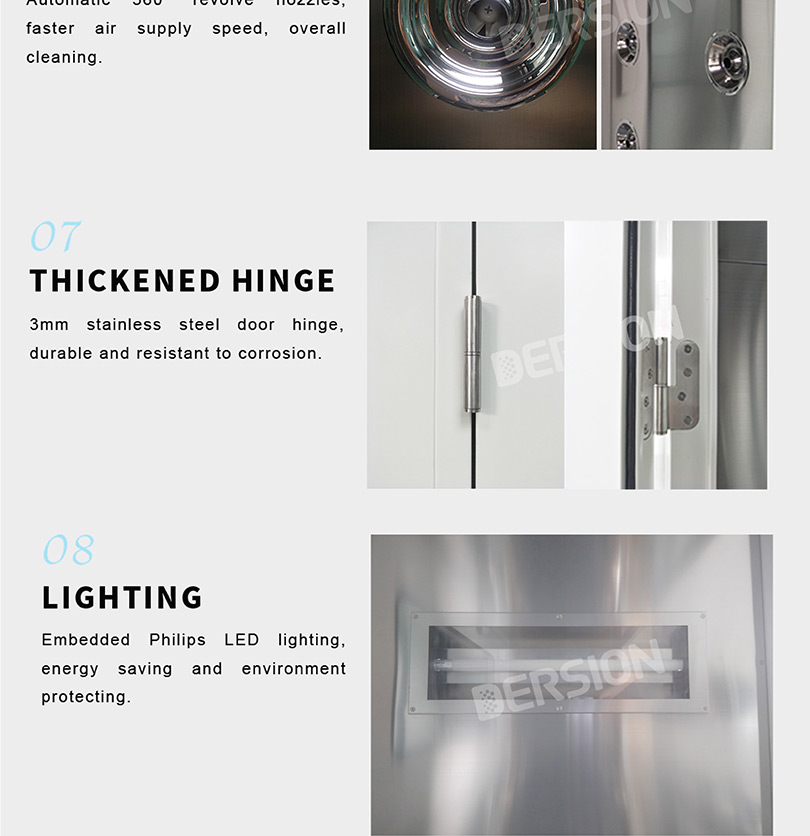

					Lighting

					Embedded LED lighting





					Power

					1.52KW

					1.52KW

					1.52KW

					3.04KW

					3.04KW

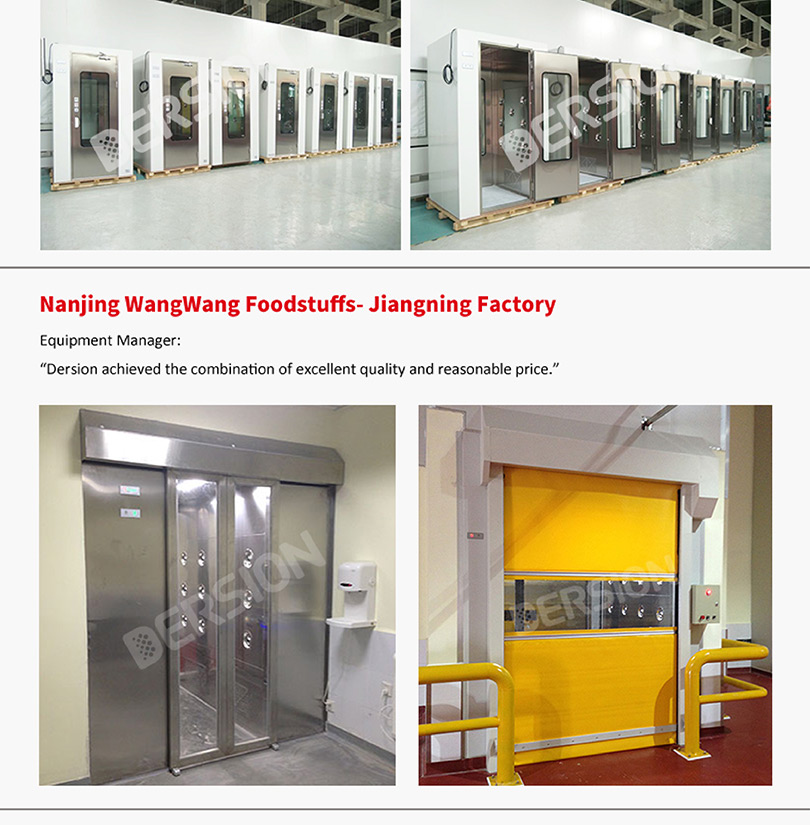

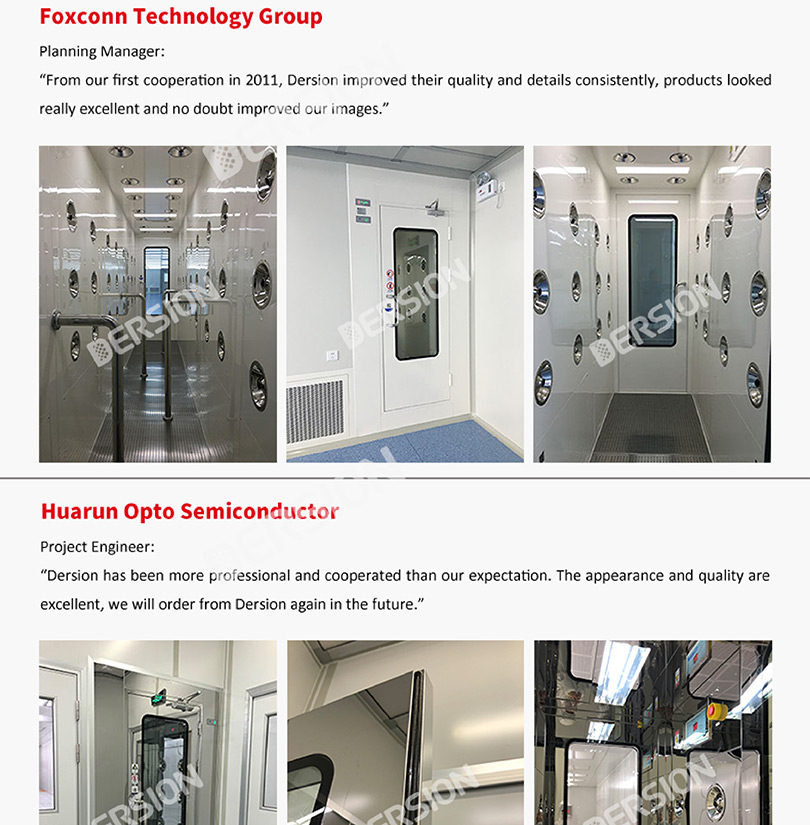

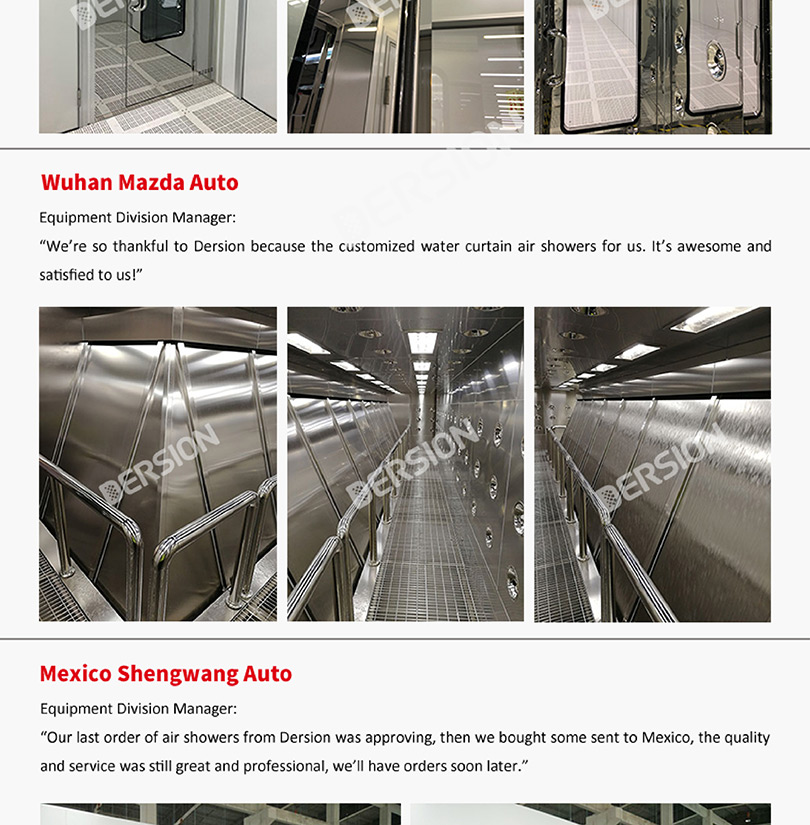

	Project Case:













	                        Foxconn Technology Group
