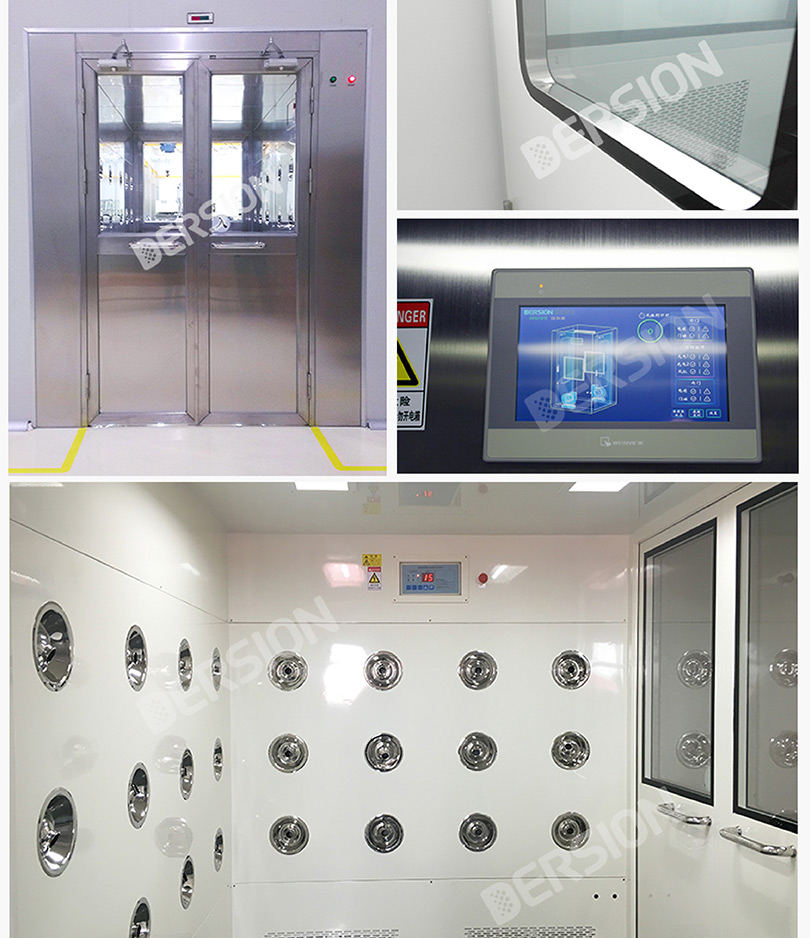

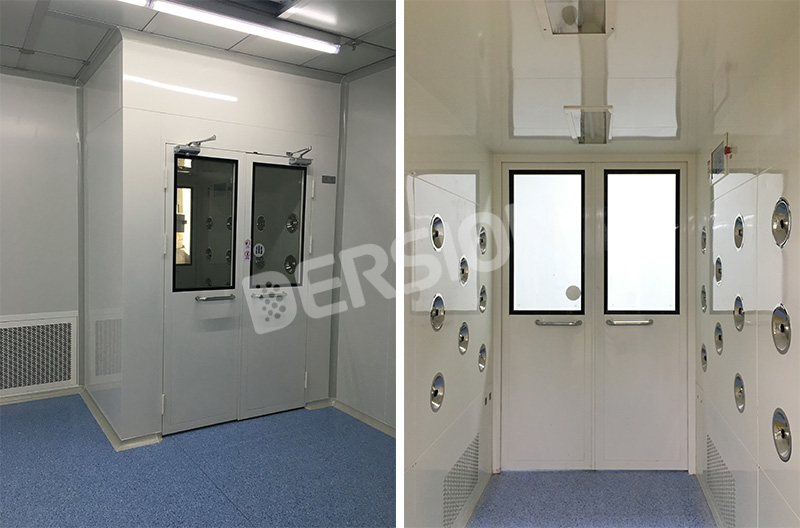

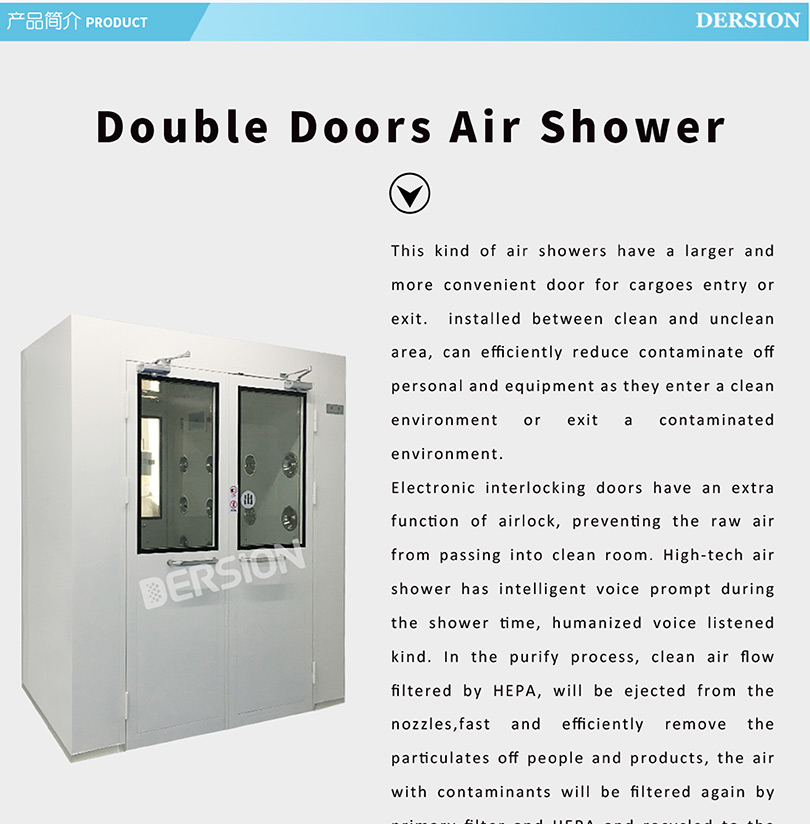

Double-Opened Door Air Shower

Double-Opened Door Air Shower is a special air shower which the doors are wider enough to let the large cargoes entry and exit.
Air shower is a general partial clean equipment, installed between clean and unclean area, can efficiently reduce contaminate off personal and equipment as they enter a clean environment or exit a contaminated environment. Magnetic door interlock system can efficiently prevent the contaminants from passing into the clean area. When workers enter or exit different levels’ clean rooms, the air shower can also work as a protective buffer room avoid cross pollution.

Get A Quote

瀏覽次數(shù)：

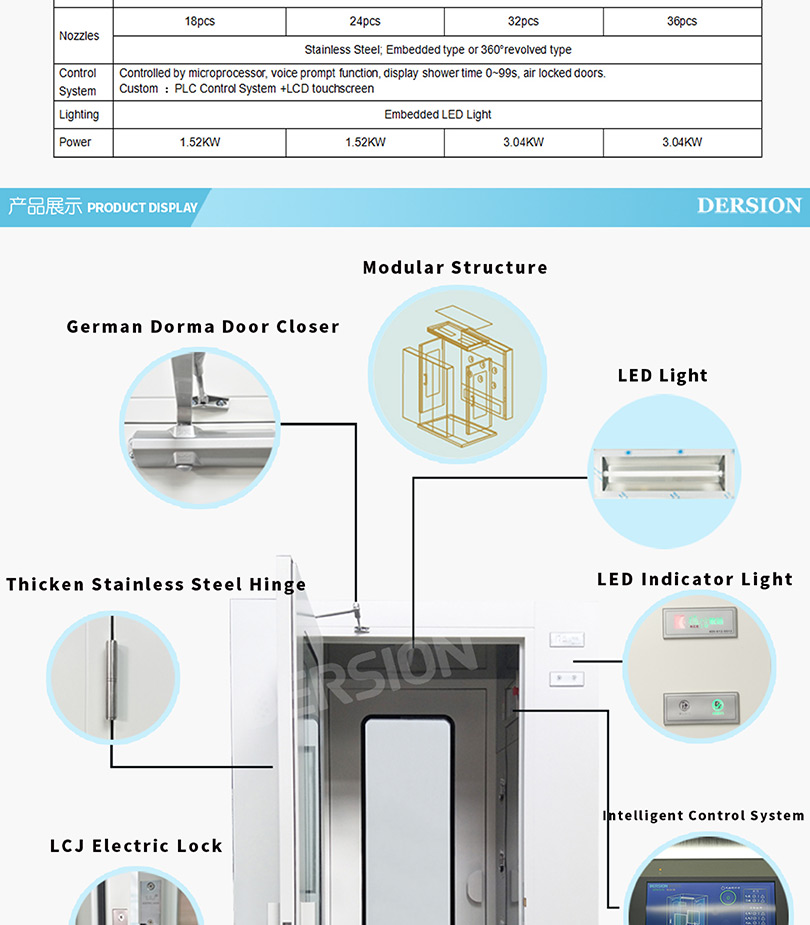

Product Features

Product Features:

● Intelligent: Future Series Control System; ARM master, double CPU, 280MHZ; Several shower patterns; Voice prompt, pictures and videos display; Intelligent judging about link and running status; Fault self-detection capability; Reserved sockets for transducers of air speed, air pressure, cleanliness class.

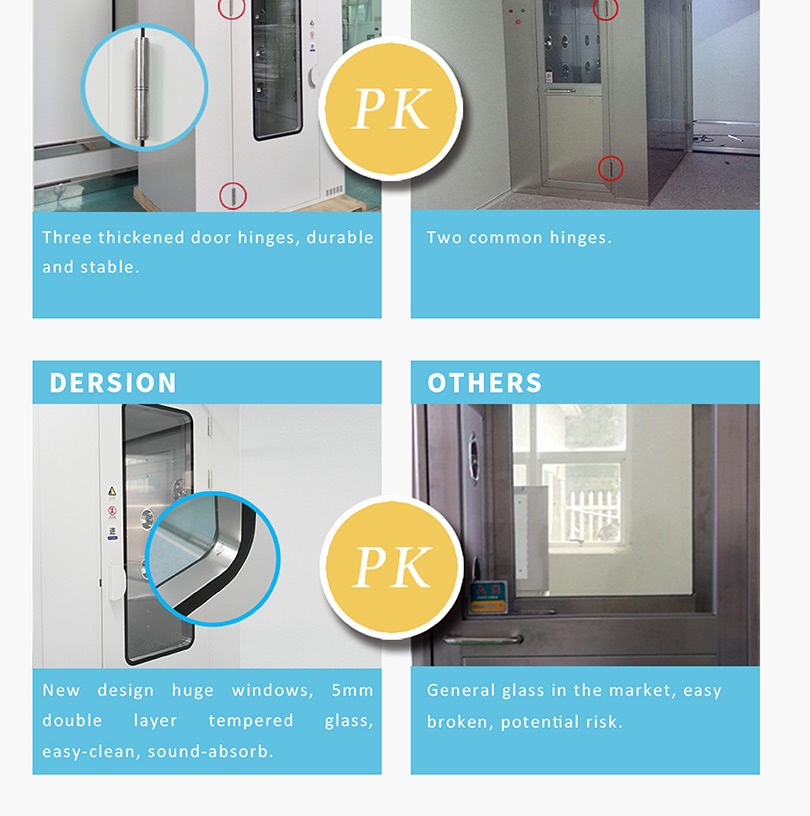

● Beautiful: Huge double-glazed windows; No visible welded joints; LCD touch screen.
● Reliable: Steel air-tight door with double glazing units made of tempered glass; dispensing technology, sealing class equal to IP6; Passed over one million times tests.

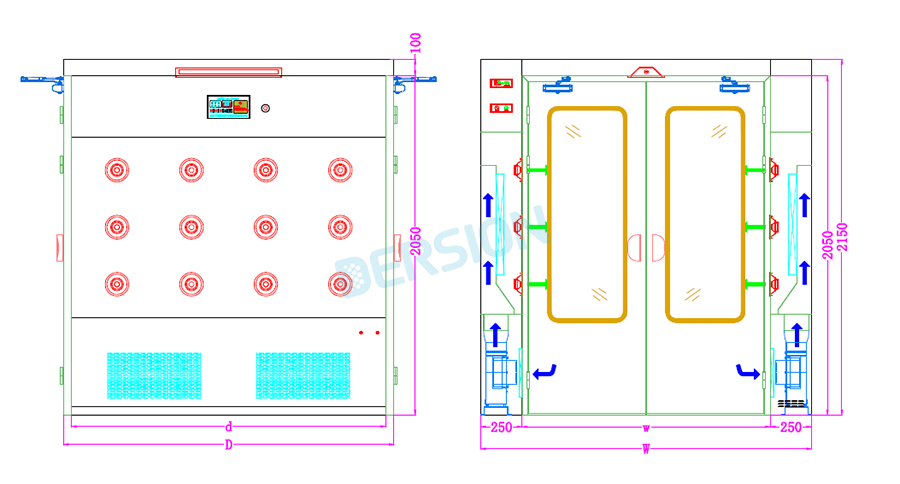

Standard Drawing:

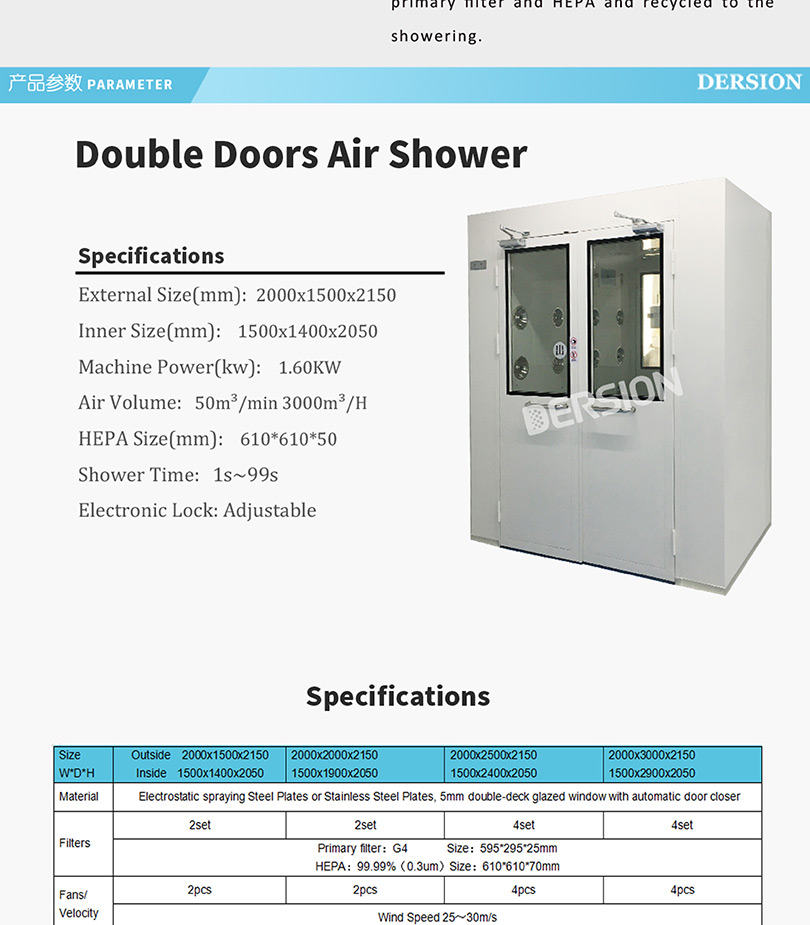

Specifications:

Size WDH	Outside 2000x1500x2150 Inside 1500x1400x2050	2000x2000x2150 1500x1900x2050	2000x2500x2150 1500x2400x2050	2000x3000x2150 1500x2900x2050

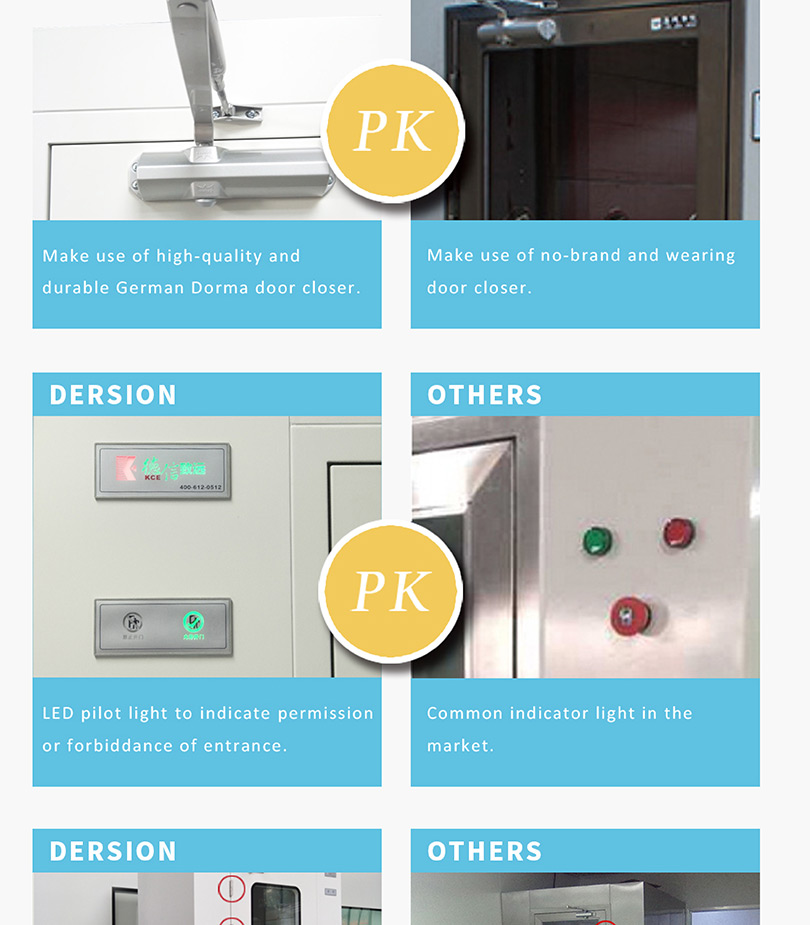

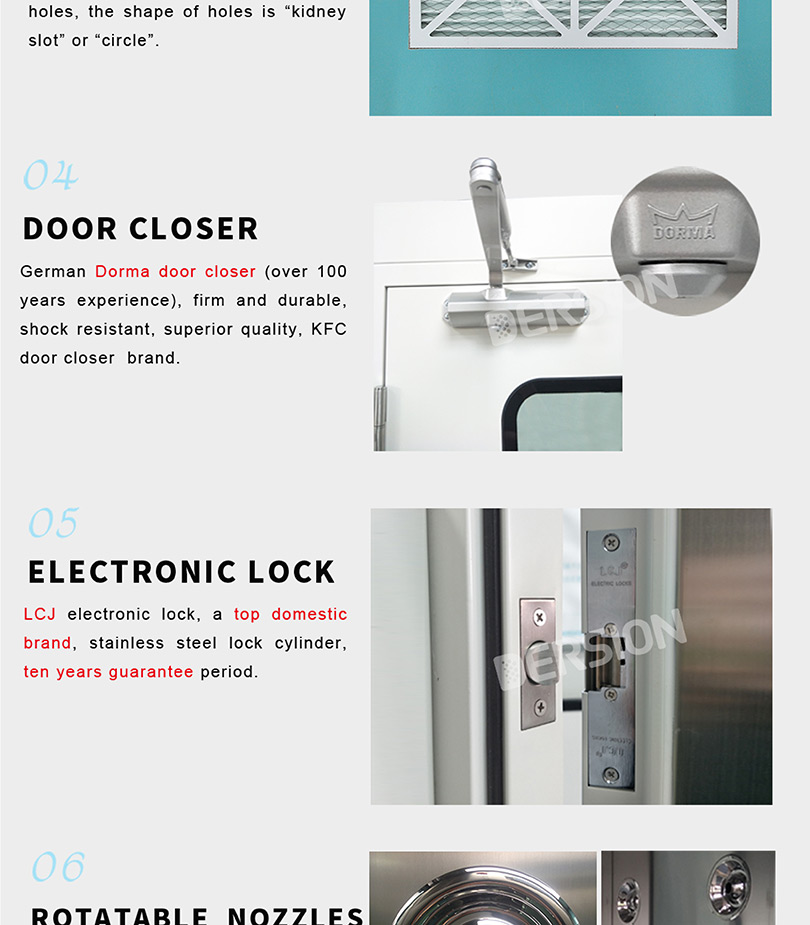

Material	Electrostatic spraying Steel Plates or Stainless Steel Plates, 5mm double-deck glazed window with automatic door closer
Filters	2set	2set	4set	4set

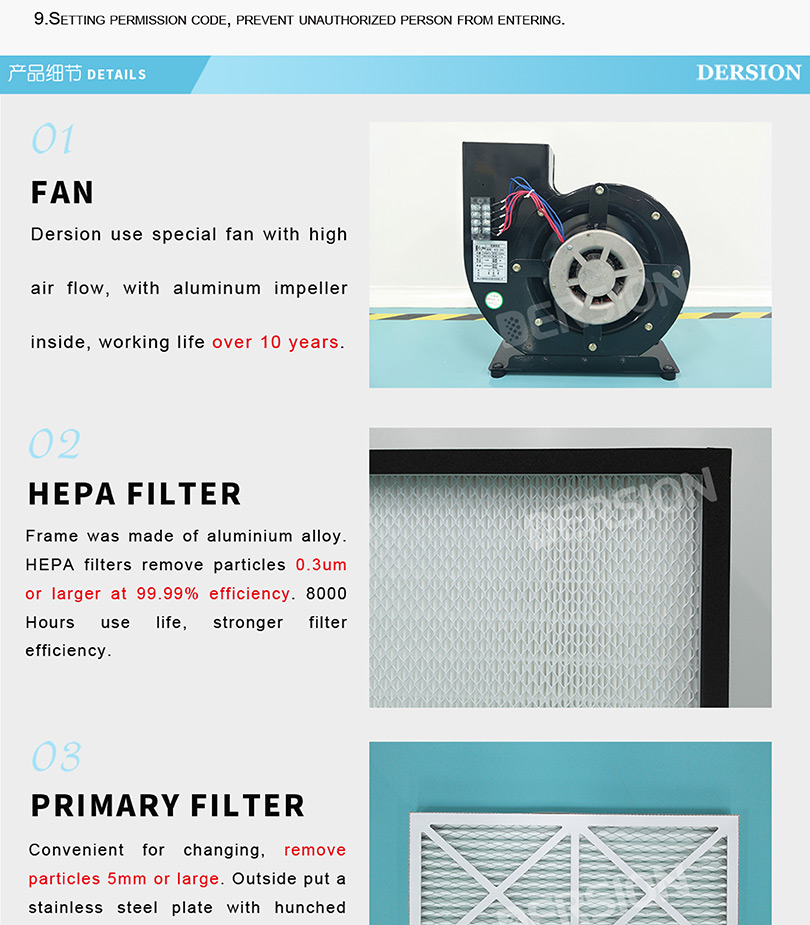

	Primary filter：G4 Size：59529525mm HEPA：99.99%（0.3um）Size：61061070mm
Fans/ Velocity	2pcs	2pcs	4pcs	4pcs
	Wind Speed 25～30m/s
Nozzles	18pcs	24pcs	32pcs	36pcs

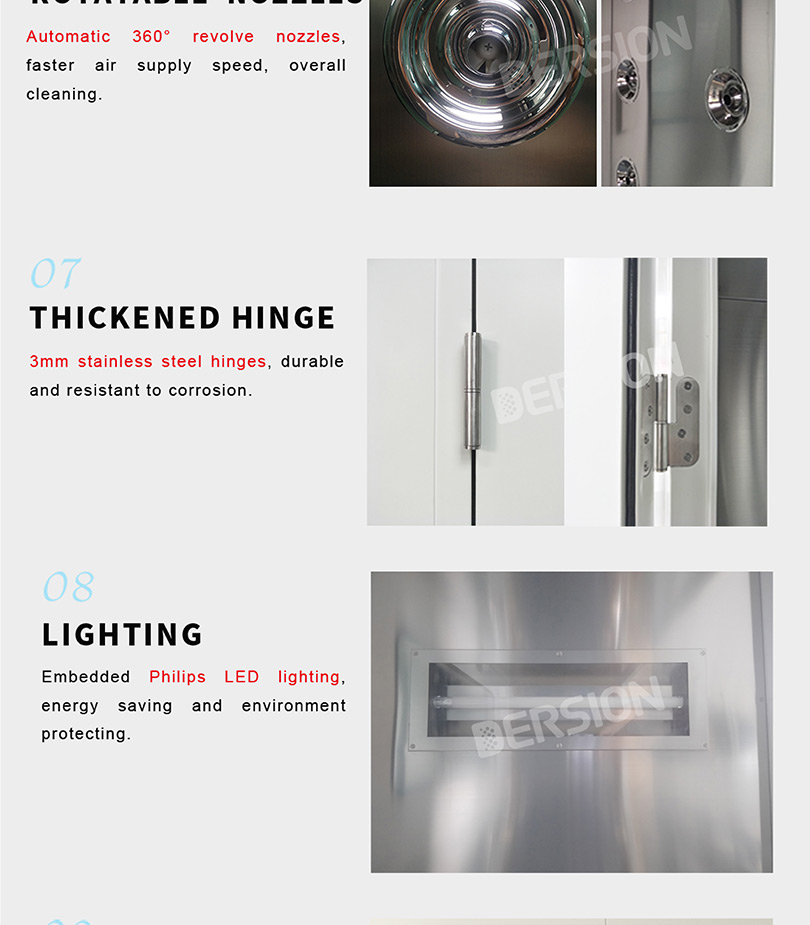

	Stainless Steel; Embedded type or 360°revolved type
Control System	Controlled by microprocessor, voice prompt function, display shower time 0~99s, air locked doors.

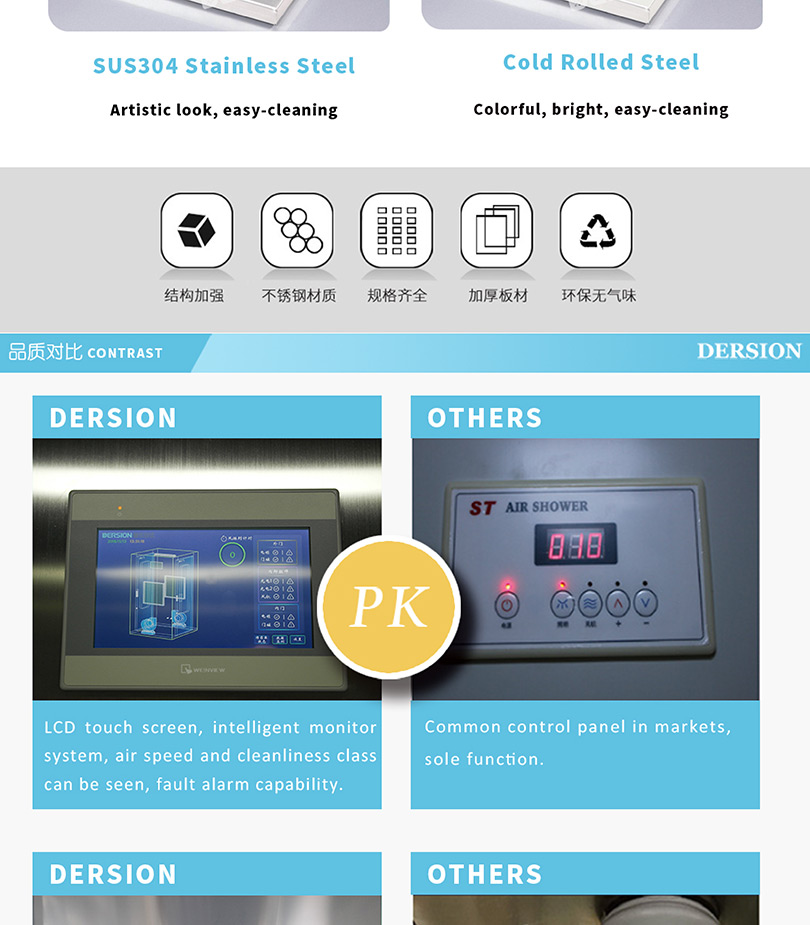

	Custom ：PLC Control System +LCD touchscreen

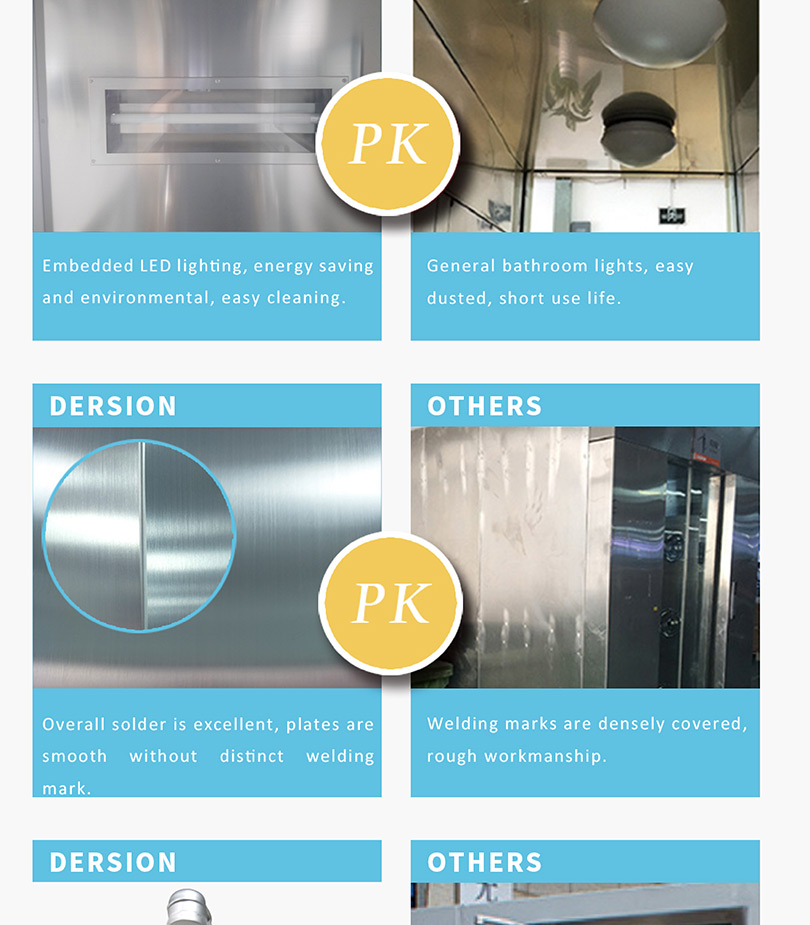

Lighting	Embedded LED Light
Power	1.52KW	1.52KW	3.04KW	3.04KW

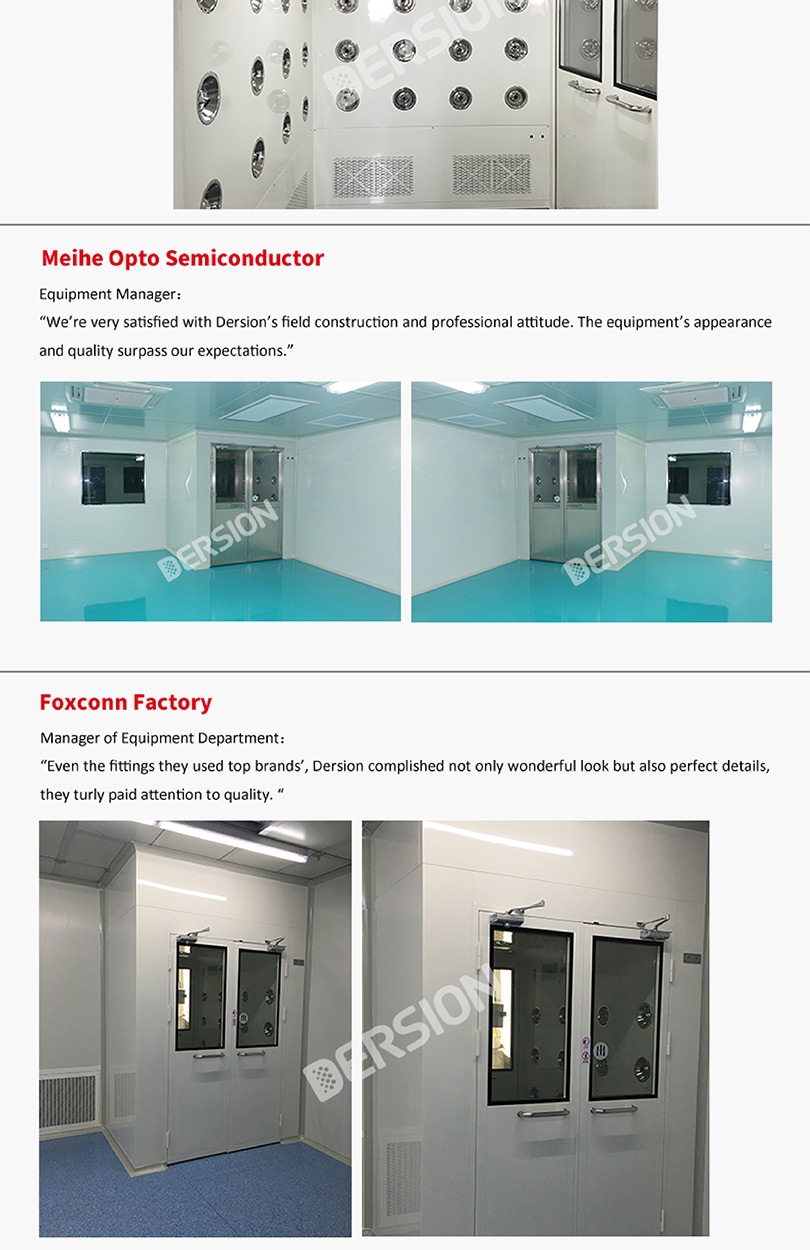

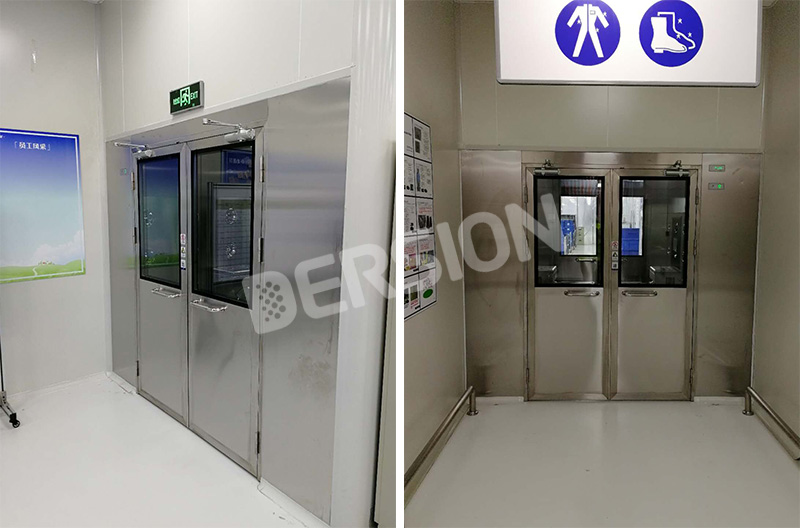

Project Cases:

FOXCONN SHANGHAI SHIJIA PHOTOELECTRICITY

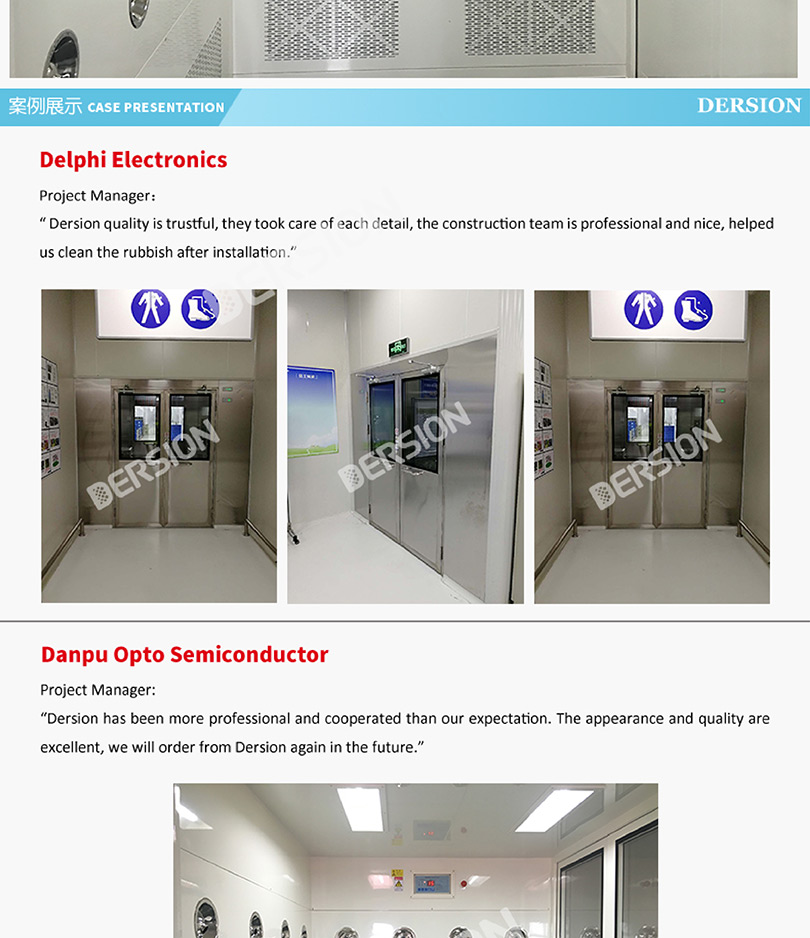

DELPHI AUTO
