          Air Shower Pass through cabinets





	Cleanroom pass through cabinets are supplement facilities to clean rooms, use for the transfer of parts and small equipment between clean room and outside environment, to lower the traffic within the clean room and significantly reduce contamination. Pass through cabinets are widely used by medical and pharmaceutical industries as well as food processing, air and spacecraft, and computers and electronics, and biology laboratories.

	Air shower pass through cabinets have the function of dust extraction and electronic interlock mechanism, prevent destroying clean rooms’ airflow or differential pressure, reduce the contamination and protect the whole clean environment.






                            Get A Quote


瀏覽次數：
















                                    Product Features:


	● Airtight: Technical sealing strips made by dispensing machine, once molding, door handle is press-buckle type

	● Easy-cleaning: Interior coved corners construction, easily wipe up

	● Classy appearance: Double glazed windows, smooth and bright

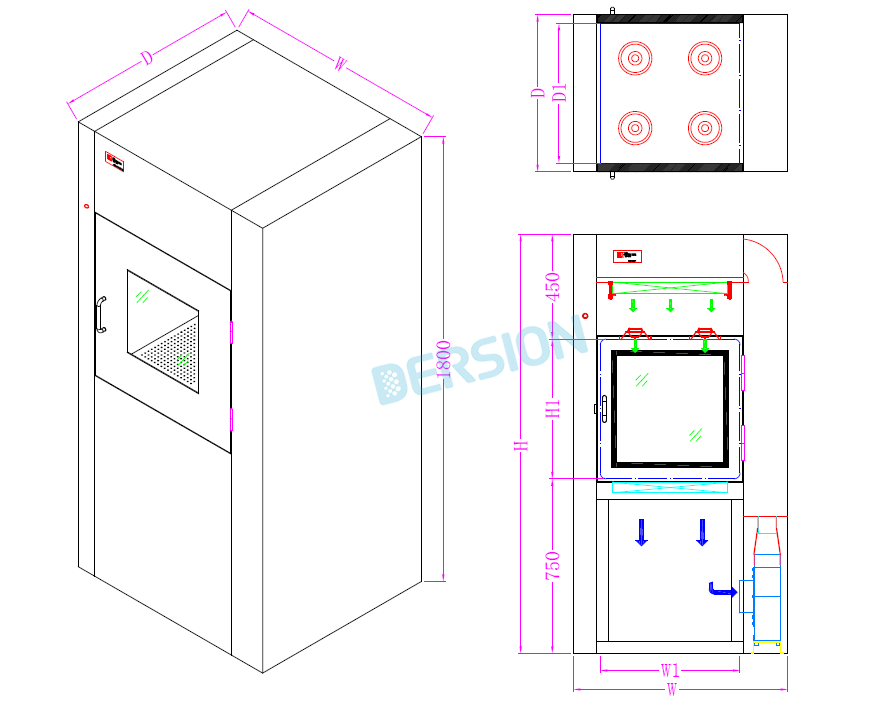

Standard Drawing:









	Specifications:











						Size

						         W*D*H





						        Outside        920x680x1650



						        Inside           600x600x600



					      1120x880x1850

					        800x800x800





					Main Material

					Stainless Steel SUS304 or Steel SPCC

					                      Interior wall made of stainless steel SUS304





					Glass Windows

					502x502x5

					650x650x5





					Double glazing windows with black backing finished frames





					Nozzles

					4pcs

					6pcs





					Stainless Steel Type Embedded, or 360° revolved





					Filter System

					HEPA：99.99% 0.3um  595x595x50





					Air Speed

					25～30m/s





					Control System

					Shower time displayed, 0~99s adjustable, electronic interlock





					       Optional：PLD control system+LCD touch screen





					Power

					220V        800W
