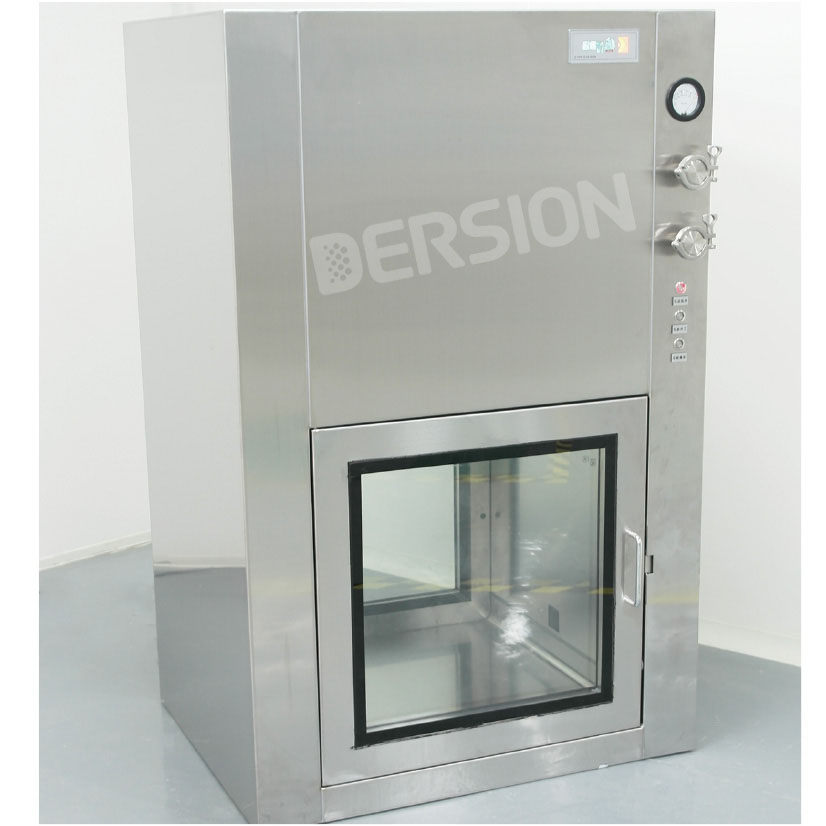

          GMP Standard- Aseptic Laminar Air Pass through cabinets





	Aseptic laminar air pass through cabinets have the features of high cleanliness class and sterilization function, significantly maintain the high cleanliness class within the clean environment, usually used by medicine industries.






                            Get A Quote


瀏覽次數：
















                                    Product Features:


	● Airtight: Technical sealing strips made by dispensing machine, once molding, door handle is press-buckle type

	● Easy-cleaning: Interior coved corners construction, easily wipe up

	● Classy appearance: Double glazed windows, smooth and bright

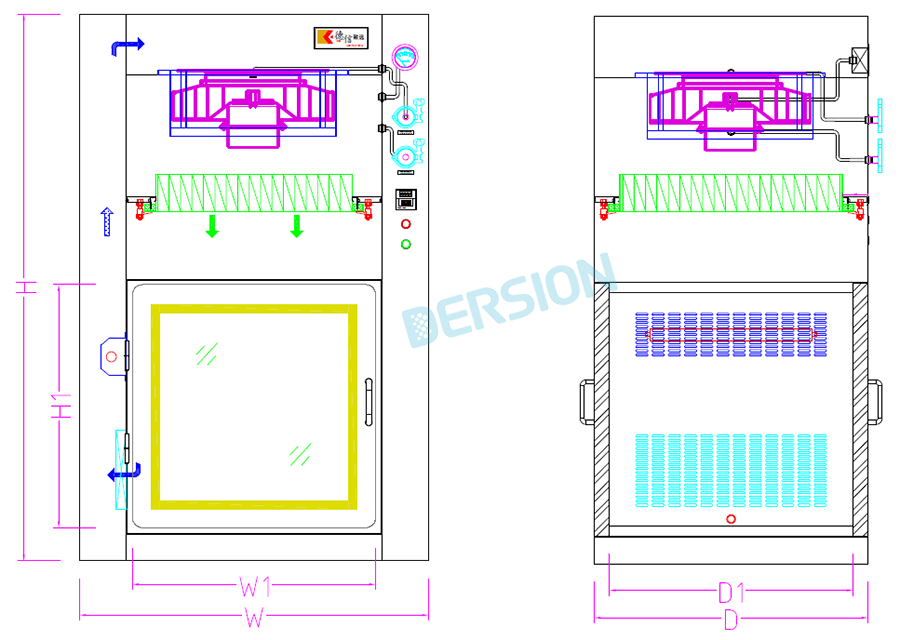

Standard Drawing:









	Specifications:











						Size



						W*D*H





						        Outside        860x680x1250



						         Inside          600x600x600



					                1060x880x1450

					             800x800x800





					         Main Material

					Stainless Steel SUS304: Brushed or mirror finished





					Door lock

					Electronic Interlock





					Glass Windows

					502x502x5

					650x650x5





					Double glazing windows with black backing finished frames





					  Germicidal Lamp

					8W





					Cleanliness Class

					ISO 5 Class ( Better than 209E Class100)





					Air Speed

					0.45m/s±20%





					Filter System

					520x520x93

					650x650x93





					Flume HEPA：99.99% 0.3um





					Pressure Gauge

					Dwyer 0-500Pa





					Check point

					SUS PAO and DOP check point





					Power

					220V  140W

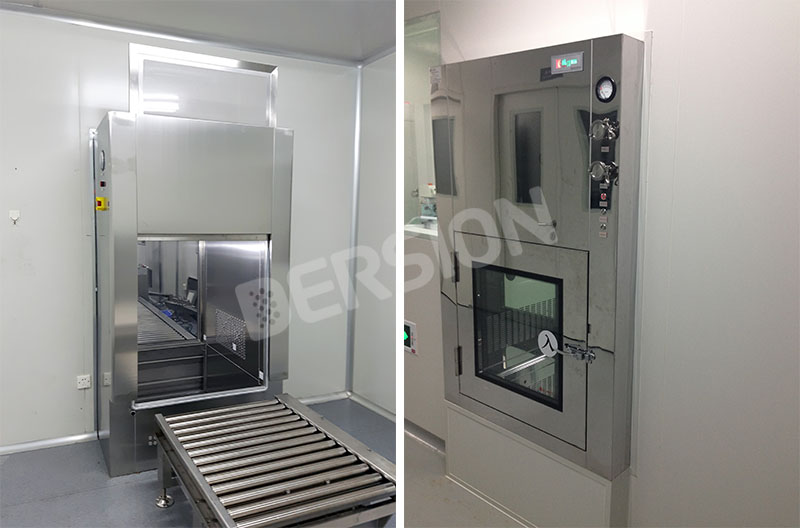

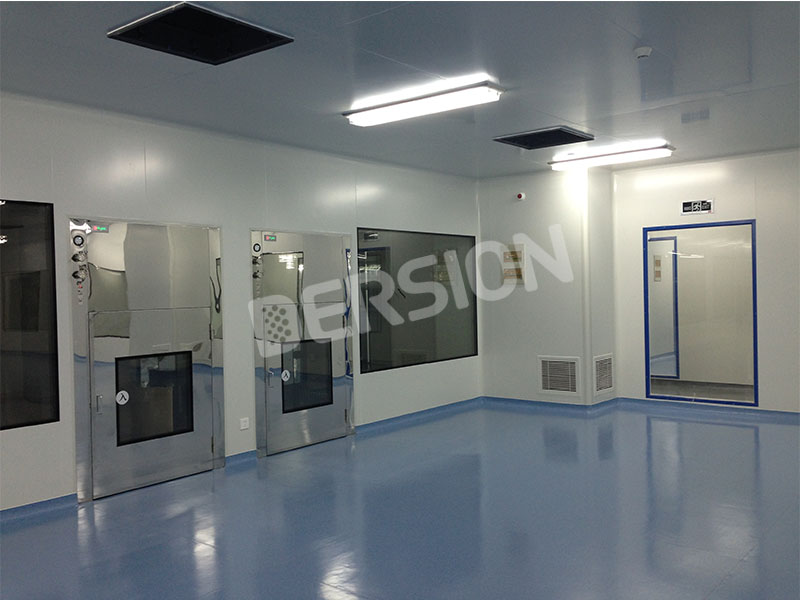

	Case Share:







	Weigao Holding







	Taiko Group
